Measure Pro 2 For Panel Pro | 10mm 3-Pin Plug


BULLER ENTERPRISES

Call For Pricing
Available to order
EDMO # 1-0073-002
MFR Part # 1-0073-002
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

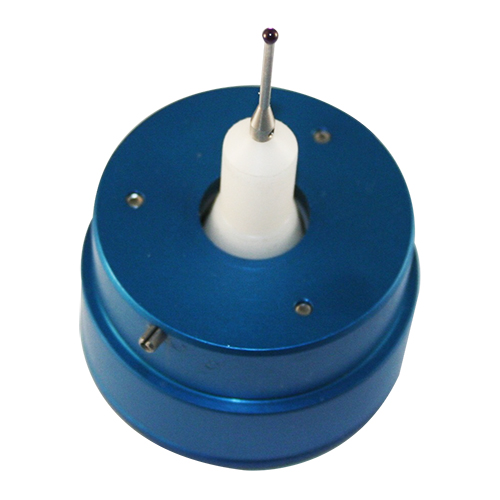

The Measure Pro is a Panel Pro accessory that provides for reverse engineering instrument panels. It exports the measurements as a DXF CAD drawing for final editing. The measure pro measures individual elements such as lines, circles, and curves and saves them as a dxf file for editing in the CAD program. The panel perimeter is the primary focus of the Measure Pro, but mounting holes and instrument holes and other panel features can be measured as well.

Features

  • Triggers +/- X axis, +/- Y axis, – Z axis

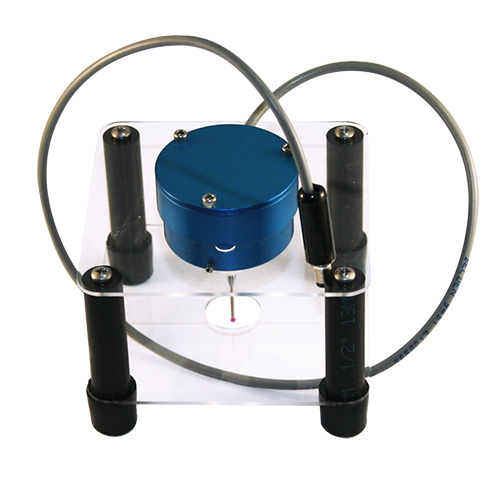

  • Probe stand protects the probe when not in use

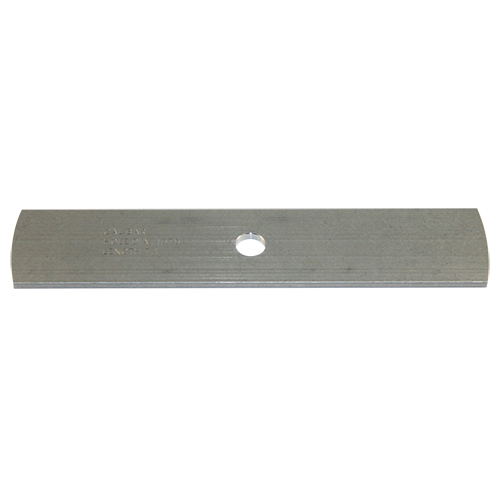

  • Calibration bar to set the exact travel required to open the switch
  • Software is part of the AvCAM software included with the Panel Pro 5925a
  • Compatible with Panel Pro 2080 and greater or modified earlier Panel Pros.

Also Purchased

Specifications

  • Weight:
    1 lb
  • Dimensions:
    7 x 4 x 4 in.
  • Connector:
    10mm 3pin plug

Related Products

Product Codes

  • Mfr Part No
    1-0073-002
  • ECCN
    8459.61.0080
  • SCHEDULE B CODE
    2B99.1 .
