SmartFind S5A AIS SART

SmartFind S5A AIS SART

MCMURDO

Call For Pricing
Available to order
EDMO # 1001755
MFR Part # 1001755
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

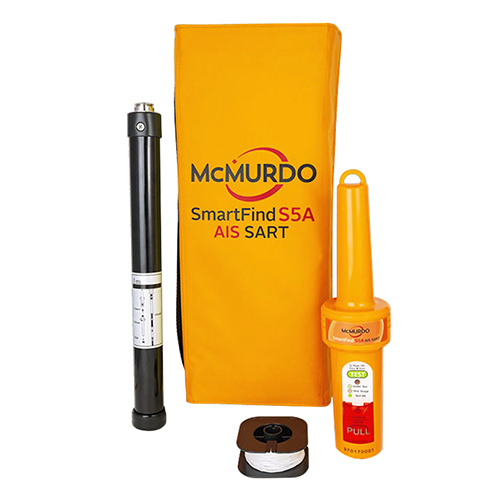

The SmartFind S5A AIS SART is a manual deployment survival craft AIS Search and Rescue Transmitter (AIS SART), intended for use on life rafts or survival craft. It meets IMO SOLAS requirements and is a replacement for legacy radar SARTs.

Compact and easy to both operate and deploy, the SmartFind S5A AIS SART is a transponder packed inside a quick release carry off bag, that allows a survival crafts location to be identified by rescue authorities and nearby AIS equipped vessels.

The SmartFind S5A transmits survivor information, including structured alert messages, GPS position information and serialized identity number. Once activated the SmartFind S5A AIS SART transmits continually for a minimum of 96 hours and inbuilt high precision GNSS receiver provides accurate position information to assist in the detection of the survival crafts’ location.

Whether wall mounted in the ships bridge or packed inside a survival craft, the highly visible and buoyant carry case affords maximum protection.

Features

  • Internationally approved
  • Ship or Survival craft options
  • Waterproof to 10m
  • Buoyant/floats
  • Rugged, compact and lightweight
  • Minimum 96 hour operational battery life
  • 6 year battery life
  • Visual indication of operation
  • Built-in test facility
  • Mounting options — Internal/External
  • Transmits GPS coordinates
  • Interoperability with AIS Users
  • Telescopic Mounting Pole included
  • Comes with protective carry off bag

Specifications

  • Weight:
    Main Body: 283g (Battery Included) Pole: 300g Storage Package: 1.08kg
  • Dimensions:
    Main Body: 300 x 70 mm Pole: 1050 mm
  • Operating Frequency:
    AIS 1, 161.975MHz AIS 2, 162.025MHz
  • Data Rate:
    9,600bps
  • Bandwidth:
    25 KHz
  • Power Output:
    1W EIRP
  • AIS Message Type:
    Message 1, Message 14
  • Modulation:
    GMSK
  • Antenna:
    Integrated by PCB
  • Receiving Channels:
    48 channels
  • Acquisition Sensitivity:
    -159 dBm
  • Tracking Sensitivity:
    -159 dBm
  • Position Accuracy:
    < 2.5m Autonomous & SBAS
  • Battery Type:
    Primary Lithium (not rechargeable)
  • Battery Operating Life:
    96 hours minimum
  • Battery Storage:
    6 years
  • Battery Service:
    Replaceable
  • Operating Temperature:
    -20°C to +55°C
  • Storage Temperature:
    -30°C to +70°C
  • Waterproof:
    Immersion to 10m
  • Buoyancy:
    Floats
  • Exterior Finish:
    Highly Visible Yellow
  • Compass Safe Distance:
    Standard Magnetic – 0.60m Steering Magnetic – 0.40m

Related Products

Product Codes

  • Mfr Part No
    1001755
  • SCHEDULE B CODE
    8517.69.0000
