Gigaflight CAT5 Ethernet Cable | 24 AWG, 2-Twisted Pair

Gigaflight

Call For Pricing

In stock

EDMO # 100T24CAT5

MFR Part # GF100T-24CAT5

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Gigaflight high speed CAT5 data bus cable is designed to meet requirements used in ARINC 646 local area network (LAN) applications and also RS422 and RS485 applications. This cable can be used in high-speed data bus (HSDB) system commonly used in Garmin systems. Constructed using a double-shield, 100% foil and 90% round wire braid shield offers effective shielding for most aerospace HSDB applications.

Features

24 AWG stranded tin-plated copper conductor
Foamed, high-temp fluoropolymer insulation
Two-twisted pair conductors: blue/white & white/blue, orange/white & white/orange
Composite foil inner sheild
38 AWG tin-plated, copper braid outer jacket
White, laser-markable Tefzel jacketing

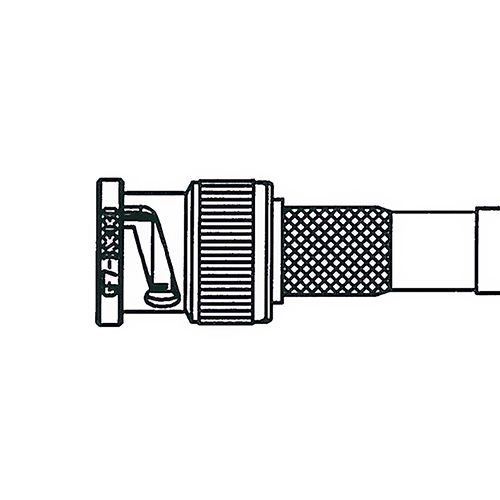

Also Purchased

Specifications

Weight:

30 lb/1000ft (44.65 kg/1000m) Outer Diameter: 0.234 in (5.84 mm) Operating Temperating: -55°C to 150°C Bend Radius: 1.2 in (30.48 mm) Attenuation: 2.1 dB/100 ft (6.9 m) @ 10 Hz Impedance: 100Ω Capacitance: 12.4 pF/ft (40.68 m) VOP: 78% Skew ns/100 ft (m) BUS: 12.8 ns/100ft (41.99 m) Max. Distance: 28.5 ft (95.5 m) Dielectric Voltage Rating: 0.9 kV RMS
