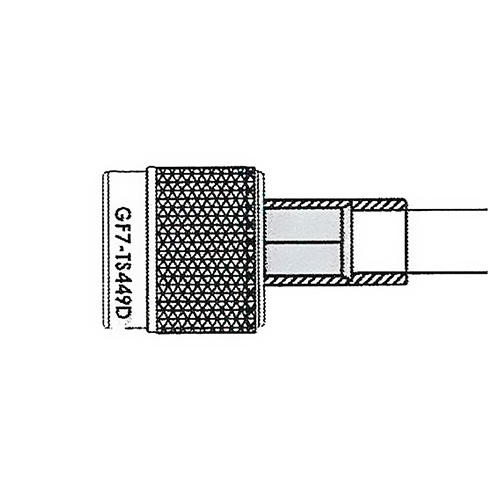

GF7-TS449D TNC Coaxial Connector | Straight, Male, 75 Ω, DC to 3 GHz, 500 Vrms

GF7-TS449D TNC Coaxial Connector | Straight, Male, 75 Ω, DC to 3 GHz, 500 Vrms

Gigaflight

Call For Pricing
Available to order
EDMO # GF7-TS449D
MFR Part # GF7-TS449D
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This TNC male coaxial connector (EDMO# GF7-TS449D) is for use with the GF7-449D coaxial HD video cable. It features a straight body geometry and operates at a DC to 3 GHz frequency range with a 75 Ω impedance and 500 Vrms voltage rating.

Features

  • For use with the GF7-449D coaxial HD video cable
  • Straight body geometry
  • 75Ω impedance
  • DC to 3 GHz frequency range
  • 500 Vrms voltage rating

Also Purchased

Specifications

  • Weight:
    0.46 oz (16.04 g)
  • Dimensions:
    0.84 x 0.57 in
  • Connector Type:
    TNC male
  • Body Geometry:
    Straight
  • Frequency Range:
    DC to 3 GHz
  • Impedance:
    75 Ω
  • Voltage Rating:
    500 Vrms
  • DWV:
    1000 Vrms
  • Insulation Resistance:
    5000 MΩ @ 500 VDC
  • VSWR:
    <1.2:1
  • Insertion Loss:
    <0.2 dB

Related Products

Product Codes

  • Mfr Part No
    GF7-TS449D
  • SCHEDULE B CODE
    8536.69.4010
