ProBalancer Sport

ACES SYSTEMS

Call For Pricing

Available to order

EDMO # 1015PBS

MFR Part # Z10-100-1015

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

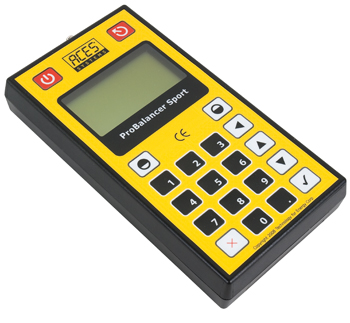

The ProBalancer Sport 1015 offers a simple way to automate propeller balancing tasks. The 1015 ProBalancer is capable of one-channel data acquisition while providing an automated process with minimal user input. It is designed to aid mechanics to preform propeller balancing tasks on virtually any aircraft and is capable acquiring tachometer input from a TTL source up to 6,000 rpm.

Features

Tachometer input received from a TTL source
Vibration sensor calibrated to accept signals from the STI CP 0907003 vibration sensor
Automates balancing process with very little user input
Designed to allows propellor balancing on any aircraft
Provides users step-by-step directions
Inexpensive, lightweight, and portable unit in easy-to-use design

Specifications

Weight:

1 lb (unit only) 2 lb (including phototach, sensor and cables)
Dimensions:

9.3 x 7.5 x 4.4 in
Accuracy:

±2%: 0 — 20 IPS (vibration amplitude) ±2%: 300 — 6,000 rpm (frequency range)
Precision:

1/100th IPS (vibration) 1 rpm (frequency)
Power Supply:

5 VDC from 4xAA batteries (recommended: slow-discharge rechargeable NiMH AA, 2,700 mAh capacity)
Operating Time:

approximately 4—6 hours (depending on mAh rating)
Temperature:

-20°C to 70°C
