COBRA II Propeller Balance Kit

Product Description

The COBRA II is dual channel vibration analyzer is a versatile yet compact instrument that combines all of the diverse technologies required for high-end engine vibration analysis, rotor track and balance, and propeller balance into one tool. With the Cobra II, all of these maintenance functions can be easily performed on virtually any airframe and engine type, such as a 2-propeller helicopter.

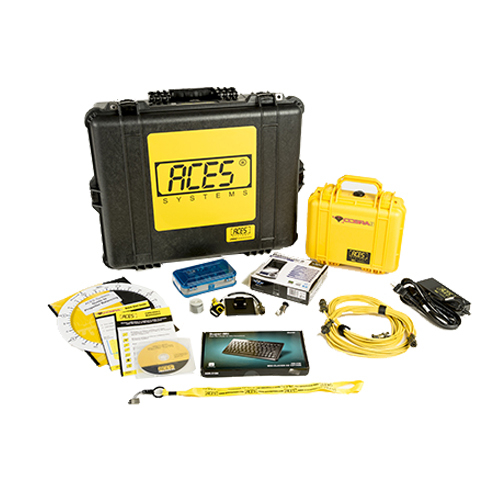

The COBRA II Propeller Balance Kit (EDMO# Z2021-PROP) includes:

COBRA II Dual Channel Vibration Analyzer, mount assembly phototach cowling, tachometer optical phototach, 25' cable, cable sensor, charger, Aces guide to propeller balancing guide, 10' reflective tape, set of 8 adapter case bolt, carrying case, tackle box pock pack, sensor mount, vibration sensor, Fixed Wing DVD, gram scale palmscale, COBRA II quick start guide, protractor propeller, set of 8 placards, Aces propeller balance, one year technical support, calibration and maintenance guide, flash drive, lanyard with disconnect, option 2021 analyzer license, option 2021 propeller balance, option 2021 vibration spectrum survey.

Specifications

• Weight:
  6.0 lb
• Dimensions:
  10.5 x 9.75 x 5 in
• Vibration Input:
  9.5V Pk-Pk, 0 to 240 IPS Peak with 20 mV per IPS sensor
• Sensor Types:
  Accepts any vibration signal input (acceleration, velocity , displacement) and any voltage generating sensor. External charge amplifier required for charge mode.
• Vibration Amplitude Accuracy:
  ±1% across frequency range
• Frequency Range:
  Selectable up to 30kHz (1,800,000 RPM)
• Tachometer Inputs:
  Better than 1 degree phase accuracy 60 to 10,000 RPM
• Display:
  7″ Day/Night Readable Color LCD Display with Superbright LED Backlight
• Power:
  Rechargeable Lithium Ion Battery

Product Codes

• Mfr Part No
  Z2021-PROP
