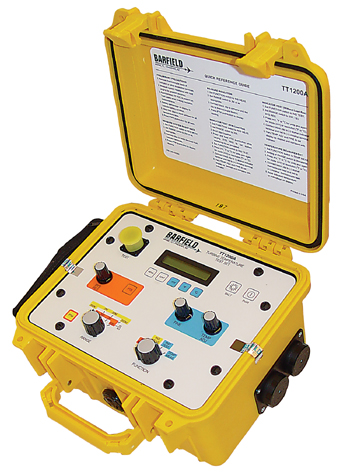

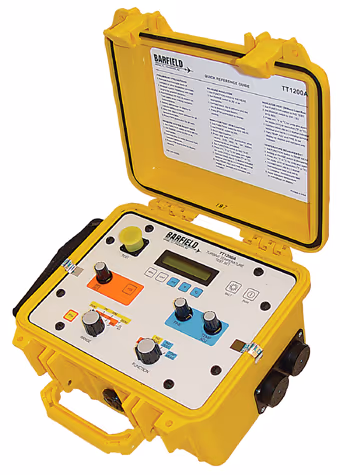

TT1200A KIT/for GE CF6 and CF6-50 Engines

BARFIELD

Call For Pricing

Available to order

EDMO # 102-00933

MFR Part # 102-00933

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TT1200A is specifically designed to accomplish all requirements for testing the aircraft Chromel-Alumel (K type) turbine temperature measuring systems. The tester can measure resistances down to 0.001W, measure insulation up to 200 MQ, perform indicator run-outs with a resolution of .1ºC or 1ºC and a range of 1372ºC, and can also display the equivalent ºF or millivoltages and may be used as a master indicator as well.

Version (MFR#102-00933) is compatible with GE CF6 and CF6-50 Engines.

Features

Self-contained, self-monitoring portable temperature and resistance measuring
Microprocessor based
Calibration date from display with user alerts to approaching cal date
Backlit 16 character alphanumeric display with user prompts
True 4-wire resistance measurements
Celsius, Fahrenheit, and equivalent millivoltage displays
Temperature range to 1372ºC
Automatic ambient test point temperature correction
Powered from long lasting C cell batteries with Auto-Off feature
Timed measurement with display hold feature for resistance and insulation functions

Specifications

Weight:

7.3 lb
Dimensions:

11 x 10 x 7 in.
Temperature measurement:

Range: -200 to 1372 °C Accuracy: ± 0.3 °C (Typ at 25 °C)
Resistance measurement:

20W: 0 - 19.999W 0.001W increments 200W: 0 - 199.99W 0.01W increments 2KW: 0 - 1.9999KW 0.1W increments 20KW: 0 - 19.999KW 1W increments Accuracy: ± 0.05 % of reading ± 2 counts
Insulation measurement:

200KW:0 - 199.9KW 0.1KW increments 2MW: 0 - 1.999MW 1KW increments 20MW: 0 - 19.99MW 10KW increments 200MW: 0 - 199.9MW 1001KW increments Excitation: 45 VDC Accuracy: ± 5 % of reading ± 2 counts
Operating temperature:

-10 to 50ºC
