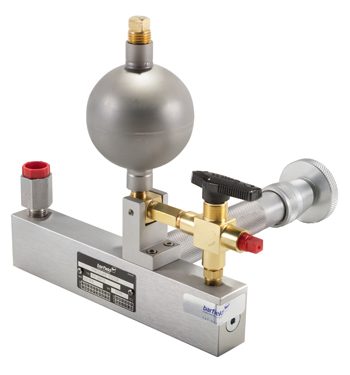

2311FA Pressure Tester
BARFIELD
EDMO#: 2311FA
MFR#: 101-00212
Description
The 2311FA Pressure Tester from Barfield allows for field testing of aircraft pressure systems of both reciprocating and turbine engines as well as airframe pressure systems. It provides pressure for driving all types of pressure transmitters, warning switches, pressure-type torque (BMEP) indicators and for system leak testing in the 0-600 PSI range.
Features
- Tester is proof-tested up to 1,200 psi
- 1/8 NPT female outlet port attaches to the system to be tested
- 1/4 Female NPT pressure gauge connection
- Portable, rugged, and accurate with a wide range capability
Specifications
Weight:
3 lb (1.36 kg)
Dimensions:
9.8 x 7.8 x 7.5 (24.9 x 19.8 x 19.1 cm)
Temperature:
operating: 0°C to 40°C (32°F to 104°F)
storage: -20°C to 60°C (-4°F to 140°F)
Pressure Connection:
1/8 NPT, female
Pressure Gauge Connection:
1/4 NPT, female
Hydraulic Fluid:
Reservoir capacity: 134 cm3 (8.18 in3)
Humidity:
N/A
Pressure Safety:
Pressure Equipment Directive - Class: Sound Engineering Practice (SEP)
Approved:
Not CE Marked as per the Directive
Product Codes
Mfr Part No :
101-00212
ECCN :
7B994
NSN :
6685012816851
SCHEDULE B CODE :
9026.20.0000
SIN :
334515
