123-1532-C Rectangular ATI Clamp | 3.175 x 1.457in, 1.5in Depth

CLAMP/Rectangle, depth: 1.5, aluminum, anodized finish, panel mount.

MSP AVIATION

EDMO#: 123-1532-C

MFR#: 123-1532-C

Description

MSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel.

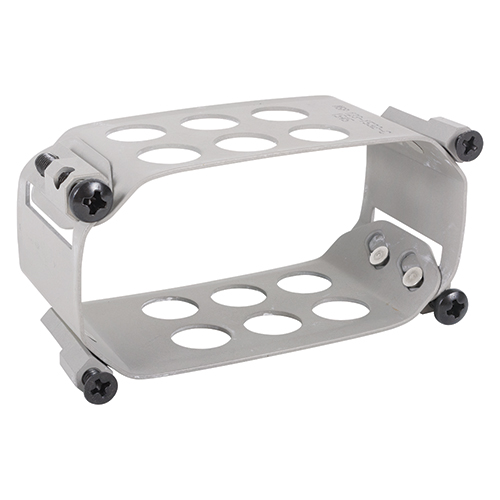

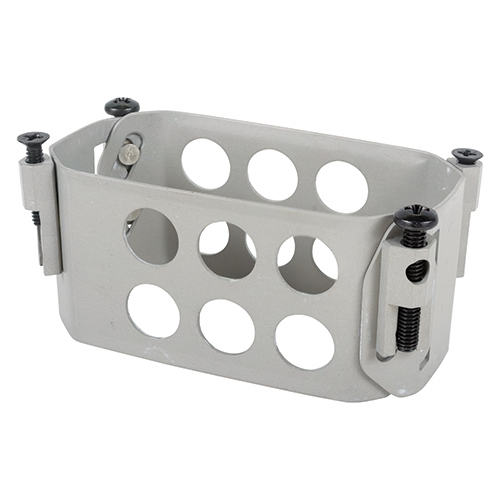

This rectangular ATI avionics clamp (EDMO# 123-1532-C) measures 3.175 x 1.457 inches, with a 1.5-inch mounting depth and constructed of light weight aluminum with an anodized finish.

Features

  • Simplifies avionic equipment retrofits for replacement or repair
  • Does not require removal of the entire panel
  • Anti-corrosion Chem-film, anodized aluminum finish

Specifications

Type:
ATI

Shape:
Rectangular

Working Size:
3.175 x 1.457 ± .015 in

Depth:
1.5 in

Mounting Hole Location:
3.060 x 1.340 in

Material:
Aluminum

Finish:
Anodized

Product Codes

Mfr Part No :

123-1532-C
