123-RG-1840 Square and Rectangular Clamp | 4 x 1.794 in, 1.5 in Depth, Anodized Finish

Product Description

MSP Aviation avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film or anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel.

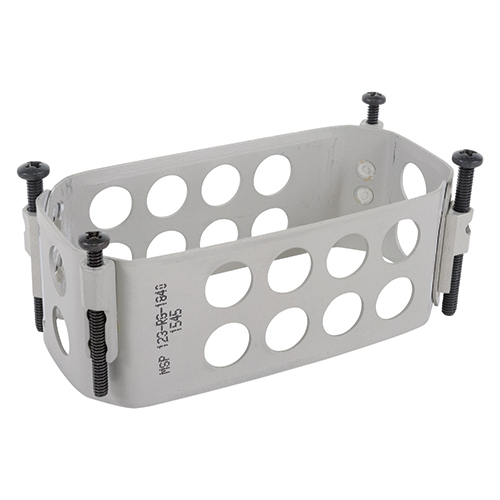

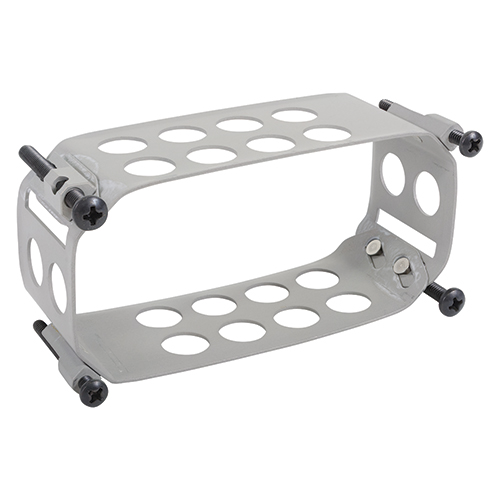

This round ATI avionics clamp (EDMO# 123RG1840) measures 4 x 1.794 inches, with a 1.5-inch mounting depth and constructed of light weight aluminum with an anodized finish.

Specifications

• Shape:
  ATI
• Size:
  4 x 1.794 in
• Depth:
  1.5 in
• Material:
  Aluminum
• Finish:
  Anodized
• Associated Screw Component Number:
  MS51957-36B, MS51957-52B

Product Codes

• Mfr Part No
  123-RG-1840
