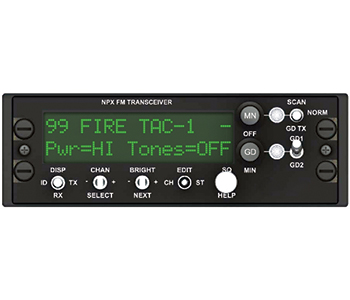

NPX138N Panel-Mount VHF/FM Transceiver | Wideband & Narrowband


CANYON AEROCONNECT

Call For Pricing
A tariff fee of $1,908.0175 EA may apply.
Available to order
EDMO # 138N000-00
MFR Part # NPX138N-000-00
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The NPX138N Tactical VHF-FM Communication system radios and dialers feature easy installation and operation, with the flexibility to accommodate the communication needs of specialized mission aircraft. Developed in close consultation with Law Enforcement, Emergency Medical, and Forestry Service agencies, the product addresses common problems associated with complex, multi-radio installations for full-mission aircraft, such as limited panel space, simultaneous operation, inexperienced users, and future upgradeability.

Features

  • Frequency range 138 MHz to 173.995 MHz
  • Wideband / Narrowband capable
  • Compact size and weight
  • Optional synthesized 2 channel guard receiver
  • Low power consumption
  • Modular construction
  • Multiple scan modes
  • Ease of operation
  • Low cost
  • Agile operation

Specifications

  • Weight:
    3 lb
  • Dimensions:
    5.75 x 8.64 x 1.88 in.
  • Mounting:
    Standard Dzus (4 fasteners)
  • Connector:
    25-pin D-subminiature male
  • Antenna connector:
    BNC female
  • RF power output:
    1W/10W selectable
  • RF input/output impedance:
    50 Ω nominal
  • Operating temperature:
    -30 C to +60 C
  • Altitude:
    25,000 ft
  • Humidity:
    95%
  • Vibration:
    DO-160C, Cat. M

Related Products

Product Codes

  • Mfr Part No
    NPX138N-000-00
