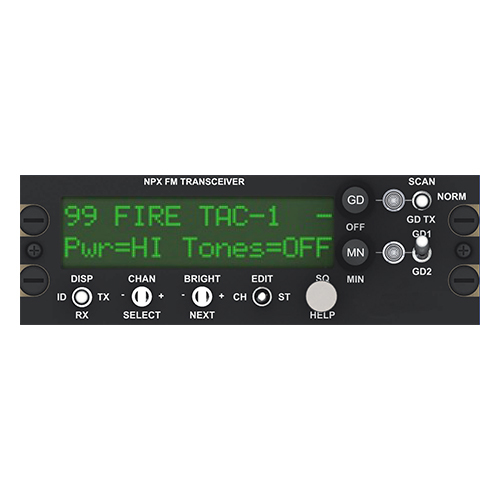

FM Panel Mount Radio | NVG Compatible, Wideband

Product Description

The NPX138N Panel-mount FM Transceiver is a USFS-compliant radio designed specifically to fulfill contract-required functionality. This transceiver allows for easy access to all pre-programmed channels and has the ability to add channels on the fly. This compact and lightweight radio functions as a stand-alone radio for single mission use and is perfect for space- and weight-restricted environments such as in a helicopter or light fixed-wing aircraft. Each of the 100 memory channels can store a receive frequency with CTCSS tone, a transmit frequency with CTCSS tone, scan function, and an alpha-numeric identifier on a 32-character LED display. An optional, synthesized, two-channel guard receiver allows tuning of user frequencies from the front panel during complex flight operations. Each channel is selectable for wideband and narrowband operation (5 kHz and 2.5 kHz deviation respectively). DTMF encoding and direct keyboard programming can be added using the DTE12 Tone Encoder/Data Entry Keypad.

This NPX138N Panel-mount FM transceiver (EDMO# 138N700-00) is wideband compatible and has 28 volt NVG compatible lighting.

Specifications

• Panel Lighting:
  28, 14, or 5 VDC, NVG Optional
• Operating Temperature:
  -30°C to 60°C
• Cooling Control:
  Internal Fan
• Remote Interface:
  RS232C Serial Data
• Channel Increments:
  5 kHz / 6.25 kHz
• Tone Capability:
  38 CTCSS tones 67.0–250.3 Hz
• Operating Mode:
  F3E Simplex or Semi-Duplex
• Audio Output:
  100 mW, 600 Ω
• Microphone:
  Amplified Dynamic or Equivalent
• Sidetone:
  Output 25 mW, 600 Ω (Nominal)
• Environmental:
  DO-160C

Product Codes

• Mfr Part No
  NPX138N700-00
