Split Wrap Braided Sleeving | 0.75in Ø, Black, 500ft Reel

HELLERMANNTYTON

Call For Pricing

Available to order

EDMO # 170-03135

MFR Part # 170-03135

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

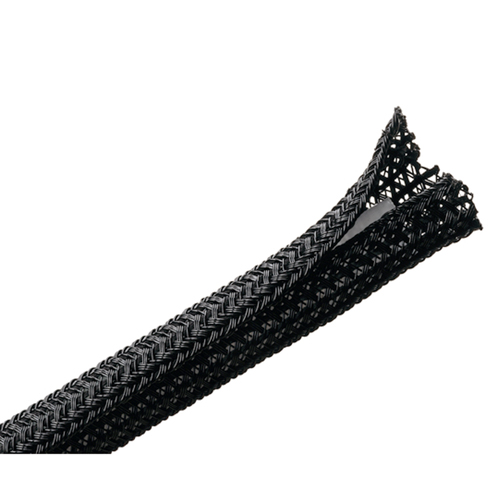

Split wrap braided sleeving is a lateral, semi-rigid braided sleeving configured for ease of installation and allows repeated access to the wire bundle when required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.

This Split wrap braided sleeving (EDMO# 170-03135) has a 3/4-inch diameter and colored black. Ships on a 500-foot reel.

Features

Center-slit overlapping design allows quick and easy access to the wires and cables for maintenance and inspection
Flexible material allows easy wrap around a variety of component shapes and sizes, making it simple to use
Unique woven pattern provides increased coverage and greater resistance to abrasion, dust and debris
Overlapping design enhances flexibility without exposing wire and cables

Specifications

Length:

500.0 ft (152.4 m) Bundle Diameter: 0.1 in (2.54 mm), min. Bundle Diameter: 0.75 in (19.1 mm), max. Diameter: 0.75 in (19.1 mm) Nominal Diameter: 0.75 in (19.1 mm) Wall Thickness: 0.025 in (0.64 mm) Material: Polyester (PET) Material Shortcut: PET Flammability: UL 94 V-0 Halogen Free: Yes UV Resistant (Yes/No): Yes Use Conditions: For Indoor and Outdoor Use Operating Temperature: -94°F to 257°F (-70°C to 125°C) Reach Compliant (Article 33): Yes ROHS Compliant: Yes UL Recognized (US): Yes
