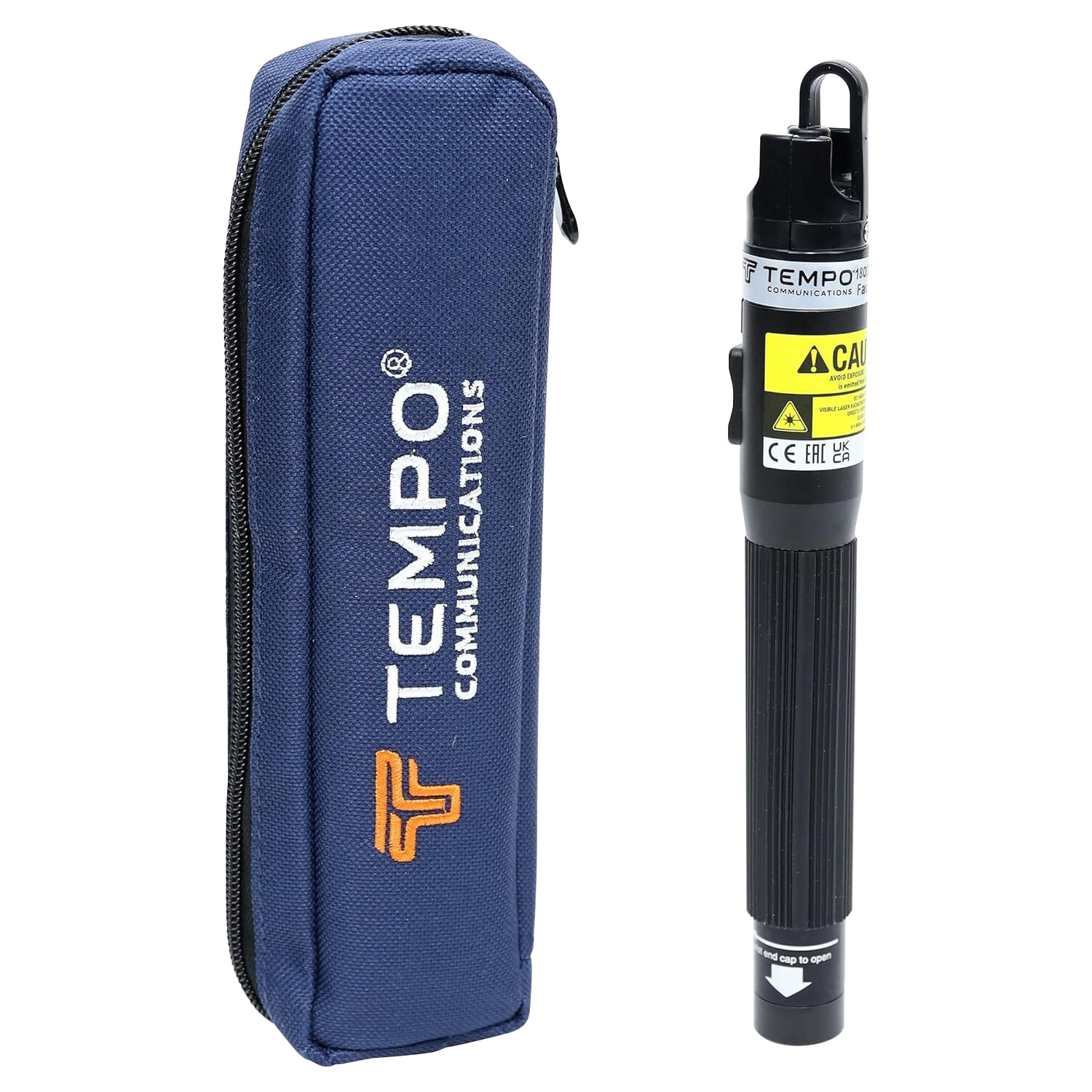

180XL Visual Fault Locator Kit

180XL Visual Fault Locator Kit

TEMPO COMMUNICATIONS

Call For Pricing
Available to order
EDMO # 180XL-C
MFR Part # 55505341
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 180XL visual fault locator allows the technician to quickly and safely visually locate broken and pinched fibers, faulty connectors, and bad splices. The long reach of the 180XL allows the technician to safely confirm fiber continuity.

This 180XL visual fault locator kit (EDMO# 180XL-C) includes a ceramic sleeve.

Features

  • Visual fault locating
  • Confirm fiber continuity
  • Allows the technician to quickly locate faults without the use of more expensive equipment
  • Class 2 designation provides safe light levels for the technician
  • 5km distance
  • Universal 2.5mm bulkhead
  • Optional 1.25mm adapter available
  • Class 2 certification, 1 mW maximum output power
  • Compatible with Singlemode and Multimode fibers
  • 2Hz modulation mode

Specifications

  • Weight:
    0.26 lbs (120 g)
  • Dimensions:
    7.08 x 0.91 in (180 x 23 mm)
  • Wavelength:
    650 nm ± 10 nm
  • Output Power:
    700µW (typical), 1 mW (max)
  • Laser Classification:
    Class 2
  • Modes:
    CW and 2Hz Modulation
  • Display:
    Red/Green LED
  • Fiber Type:
    Singlenode, Multinode
  • Connector Interface:
    2.5 mm Universal, Optional 1.25 mm adapter
  • Battery:
    AA (2 Included)
  • Battery Life:
    80 hr (w/ 3.9 Wh batteries)
  • Operating Temperature:
    -10ºC to 45ºC
  • Storage Temperture:
    -40ºC to 70ºC
  • Maximum Distance:
    5 km

Related Products

Product Codes

  • Mfr Part No
    55505341
  • SCHEDULE B CODE
    9030.40.0000
