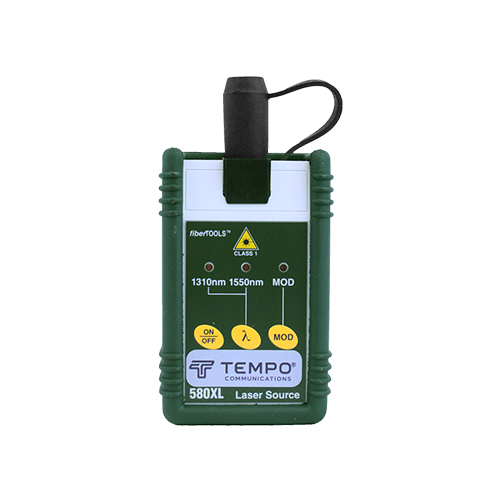

580XL-EMI Laser Source

TEMPO COMMUNICATIONS

Call For Pricing

Available to order

EDMO # 580XL-EMI

MFR Part # 580XL-EMI

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Tempo 580XL-EMI is the perfect light source for performing insertion loss testing on single-mode fiber optic cabling. The 580XLEMI features dual wavelength output (1310nm and 1550nm) for fast and accurate insertion loss measurements. Once the user sets a reference with an optical power meter, the 580XL-EMI Laser Source provides stable output for hours of continuous measurements. The 580XL-EMI Laser Source also features a Universal Connector Interface (UCI) and can be configured to work with a variety of connector types (available separately).

Features

1310nm / 1550nm wavelength Laser source
Rugged, splash-proof design
Long battery life: over 80 hours of continuous operation
Continuous wave and modulated output settings
Enhanced EMI performance: MIL-STD-461E, Method RS103 tested to 200 V/m

Specifications

Weight:

8.5 oz. (241g)
Dimensions:

2.8 x 5.6 x 1.4 in. (7.2 x 14.2 x 3.5 cm)
Center Wavelengths:

1310nm, 1550nm
Range (typical):

1310nm: 1280nm to 1340nm 1550nm: 1520nm to 1580nm
Max. spectral width:

<5nm
Stability (1 hour):

±0.05dB
Typical power output (9/125μm):

Minimum: -8dBm Typical: -7dBm
Modulation frequency:

270Hz, 1 kHz and 2 kHz
Power Requirements:

Two AA size 1.5V batteries (approx. 80 hours continuous operation)
Connector interface:

UCI
Operating temperature:

5 to 131°F (-15 to 55°C)
Storage temperature:

-31 to 158°F (-35 to 70°C)
Humidity:

0 to 95% (non-condensing)
CE:

EN61010; EN50081-1: 1992; EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4
CDRH laser class:

Class 1
