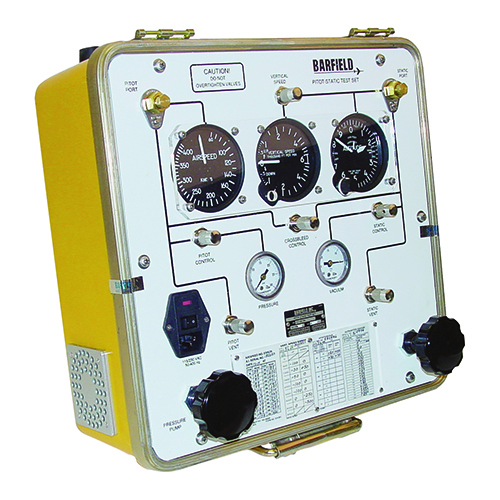

1811HA Pitot Static Test Set | 1811HA-445, Internal Electric Pump
BARFIELD
EDMO#: 1811HA-445
MFR#: 101-00184-445
Description
The Barfield 1811HA testers are portable, self-contained units, used for testing and calibrating aircraft pitot-static systems. The tester has three-instrument capability (Altimeter, Vertical Speed, and Airspeed) for analog units to perform aircraft leak tests or instrument calibrations. 1811HA series testers are configured with internal electric pumps, standard hand pumps, and external pressure ports for supplying the necessary pressure and vacuum needed for on-board testing and calibration.
Version 1811HA-445 has a range of Airspeed: 60-420kts, Vertical Speed: 4k ft/min, Altimeter: 35k ft.
Features
Test set includes:
- (2) 25-ft hoses
- (1) Pitot mast adapter
- (1) 2423F static port adapter kit
- (1) Pitot-static system cd-rom
Features:
- Power entry module for internal electric pump
- Compact fiberglass case allows unit to fit in tight quarters
- Performs on-board instrument calibration checks
- Performs precision Pitot-Static leak tests
- Three-instrument capability for analog units with optional ranges
- Altimeter, Vertical Speed, and Airspeed gauges
- Correction cards for all analog instruments
- Fully portable, self-contained (No electric or external pressure sources required)
- Vacuum & pressure hand pumps installed
Specifications
Weight:
34 lb
Dimensions:
15.5 x 15.5 x 11.5 in.
Operating temperature range:
0ºC to 50ºC
Pneumatic connections:
Pitot, static
Gauges:
Altimeter, vertical speed, airspeed
Product Codes
Mfr Part No :
101-00184-445
ECCN :
7B994
SCHEDULE B CODE :
9026.80.0000
