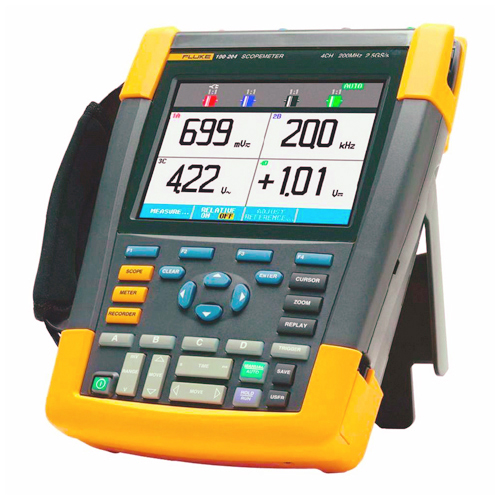

Fluke 190-204 ScopeMeter® Test Tool | 200 MHz, 4 Channels

FLUKE

Call For Pricing

Available to order

EDMO # 190-204/AM

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

As the first four-channel portable scope safety rated CAT III 1000 V / CAT IV 600 V, the Fluke ScopeMeter® 190-204 combines an unprecedented level of performance, ruggedness, and portability with 200 MHz bandwidth and real-time sampling rates up to 2.5 GS/s and 200 ps resolution to capture noise and other disturbances. This model features deep memory up to 10,000 samples per channel; so you can examine very small parts of the waveform in detail, and it is IP-51 rated to withstand dust, drips, humidity, and wide temperature variations.

Fluke ScopeMeter® test tools are hand-held battery operated, designed to meet the demands of field service professionals.

Features

Included Accessories:
VPS410 Voltage Probe Sets (one red, one blue, one grey, one green)
BC190 Battery Charger/mains Adapter
BP291 4800 mAh high capacity Li-ion Battery
Hand-strap (affixed to instrument)
Hangstrap
Multi-Language User Manuals on CD-Rom
FlukeView ScopeMeter® demo package (restricted functionality)
USB Interface Cable
Features:
Two electrically isolated inputs
CAT III 1000 V / CAT IV 600 V safety rated
200 MHz bandwidth model
Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
Dedicated 5000 Count digital multimeter
Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
ScopeRecord roll mode, capture waveform sample data for up to 48 hours
TrendPlot, trend measurement readings for up to 22 days
Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
IP-51 rated for dust and drip proof to withstand harsh environments
Isolated USB ports for memory devices and PC connectivity
Li-Ion battery for extended operating timespanUp to 7 hour (BP291 included standard)
Charge spare battery using optional external battery charger EBC290
Easy-access battery door to make it easy to swap batteries
A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock

Specifications

Weight:

2.2 kg
Dimensions:

270 x 190 x 70 mm
Li-Ion Battery:

BP291 4800 mAh battery up to 7 hours included standard
Bandwidth:

200 MHz
Number of Channels:

4 channels
Real-Time Sample Rate:

2.5 GS/s
Inputs:

4 scope plus DMM input
Independently Floating Isolated Inputs:

Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase Range:

2 ns - 2 min/div
Input Sensitivity:

2 mV-100 V/div
Trigger Types:

Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger Source:

Any scope input channel
Operating Temperature:

0°C to 40°C (Including Batteries) 0°C to 50°C (Excluding Batteries)
Storage Temperature:

-20°C to +60°C
Operating Altitude:

Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V
Glitch Capture:

8 ns
Scope Measurements:

Cursor: 7 Automatic: 30
Maximum Record Length:

ScopeRecord mode: 30,000 pts Scope mode: 10,000 pts per input
Persistence:

Digital persistence giving analog oscilloscope-like waveform decay
Waveform Compare:

Waveform reference with automatic Pass/Fail testing
Electrical Safety:

1,000V CAT III/600V CAT IV (EN61010-1)
Warranty:

Three years on main instrument, one year on accessories
