TL Series Micro Toggle Switch | SPDT, (mom)ON-ON


EDMO DISTRIBUTORS, INC

EDMO#: 1TL1-8

MFR#: 1TL1-8

Description

The Micro Switch TL Series toggle switches are sealed to military specifications, MIL-DTL-3950. These sealed toggle switches feature a bonded seal between the toggle lever and bushing, as well as between the cover and case. The robust design makes the TL series ideal for many military and aerospace applications where reliability is critical. These switches are designed for applications in environments where the panels are subjected to mechanical shock, vibration, and temperature extremes, as well as environments with dust, splashing or hose-directed water. The TL Series toggle provides reliable performance and a long operating life under tough conditions.

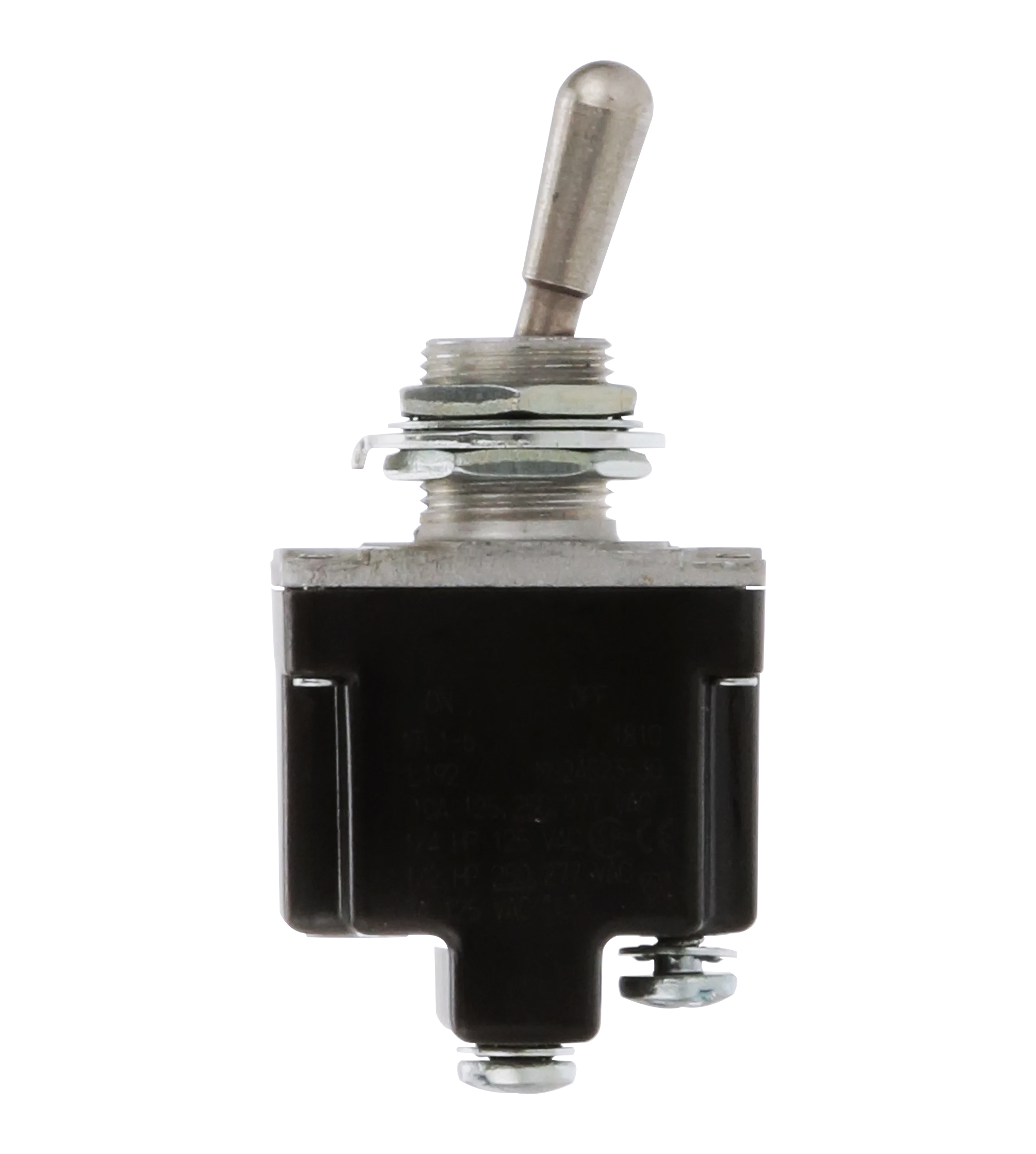

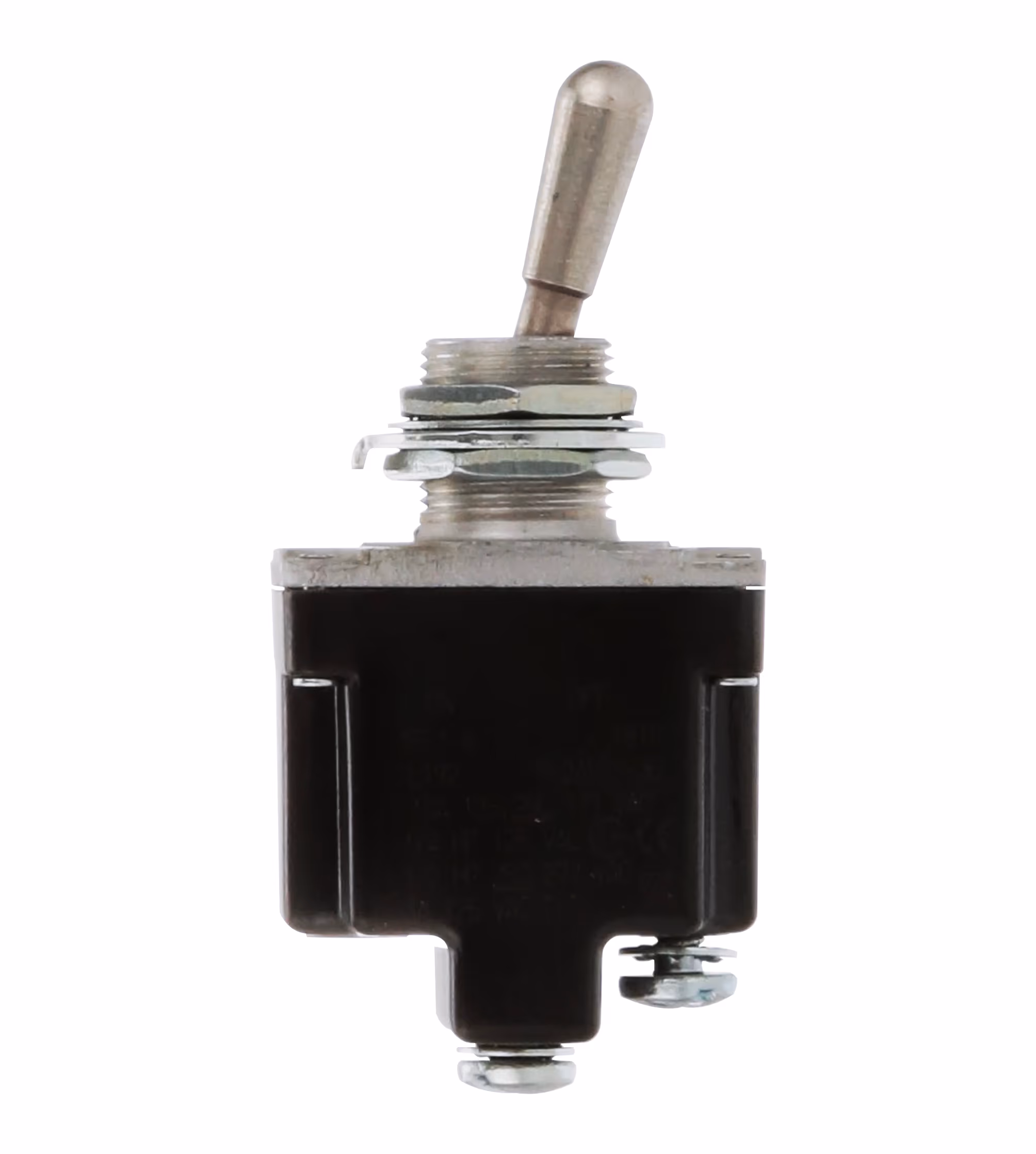

This 1TL1 Micro Switch (EDMO# 1TL1-8) is a single-pole, double-throw toggle switch with an (mom)ON-ON, panel mount configuration with screw terminals.

Features

  • Qualified to MIL-DTL-3950
  • Environment-proof sealing
  • Completely sealed switching chamber
  • Innovative Step-design case provides added space between terminals to help prevent shorting
  • Robust construction

Specifications

Dimensions:
26.7 x 33.5 x 22.6 mm (1.05 x 1.32 x 0.89 in)

Circuitry:
DPST

Sealing:
qualified to MIL-DTL-3950

Operating temperature:
-65°C to 71°C (-85°F to 160°F)

Switch Mounting:
Panel

Contact Voltage AC:
277V, nominal

Contact Voltage DC:
250V, nominal

Switch Terminals:
Screw

Illumination:
Non-Illuminated

Action:
3 position

Mounting:
Bushing 15/32 in

Actuation:
Standard

Amp Rating:
Up to 20A, AC and DC capability, maximum

Approvals:
UL, CSA, CE

Product Codes

Mfr Part No :

1TL1-8
