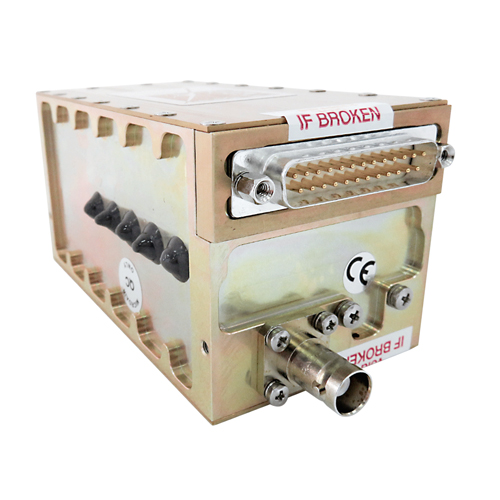

T2000UAV-L Transponder | TNC Connector, Rev 2

Product Description

The T2000UAV-L is designed for use in UAV aircraft for allowing unmanned aerial vehicles to be visible to air traffic controllers. This T2000 transponder for UAV's replies to all Mode A and Mode C interrogations and accepts barometric altitude Grayscale/Gillham code data. The T2000UAV-L is designed for extremely low power consumption for extended operation during battery operation and delivers a 200 watt pulse-out signal. This lightweight and compact unit, weighing only 454 grams, is designed with simple installation in mind.

This T2000UAV-L (EDMO# 20000135) features a TNC connector.

*The T2000UAV-L Mode 3A/C is a special version of the T2000 Transponder, designed for operation in unmanned aircraft. This product is NOT TSO’d due to the OEM nature of the management software.

Specifications

• Weight:
  0.454 kg Dimensions: 13.4 x 6.1 x 6.1 cm Transmitter: 1090 MHz ±0.2MHz 200W pulse output 80 ns rise time 120nS fall time Receiver: 10 dBm to –72 dBm dynamic range 1030 MHz center frequency ±5 MHz pass band @ -3 dB Input Power: 10 VDC — 33 VDC 100 mA — 150 mA @ 28V 150 mA — 200 mA @ 14V Operational Modes Standby: Mode 3A (4096 codes) Mode 3A/C Temperature: -20°C to 55°C RTCA Compliance: DO-144 DO-160D DO-178B Level C

Product Codes

• Mfr Part No
  20000135
• SCHEDULE B CODE
  8526.10.0010
