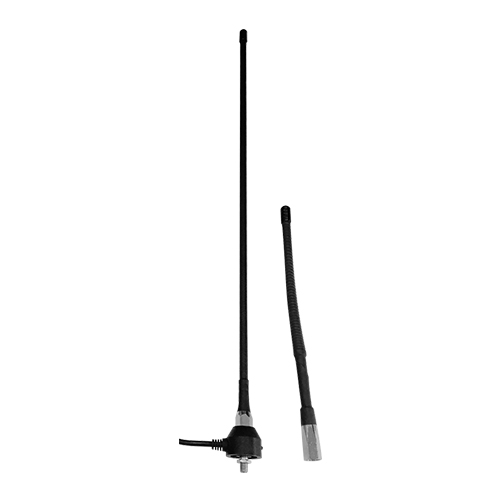

Airkit GI Antenna | 127 MHz, 50 W, 50Ω

Product Description

The Airkit GI (EDMO# 20000453) is a completely ground independent antenna which is designed to be used in a wide variety of applications, such as kit-build and composite aircraft. This products is not approved as a primary com antenna.  Termination is provided to the industry standard BNC female and supplied with a 10m RG58CU coax cable. The Airkit antenna is one of the easiest antenna to install and has a maximum bandwidth of over 3MHz under 1.6 to 1 VSWR.

Specifications

• Weight:
  276 g
• Length:
  870 mm
• Antenna Type:
  Vertical Dipole
• Frequency:
  127 MHz
• Impedance:
  50 Ω
• Max Power:
  50 W
• Pattern:
  Omni-Directional
• Application:
  Mobile or Base Station
• VSWR:
  1.6 to 1
• Coax Cable Length:
  10 m

Product Codes

• Mfr Part No
  20000453
• SCHEDULE B CODE
  8529.10.4000
