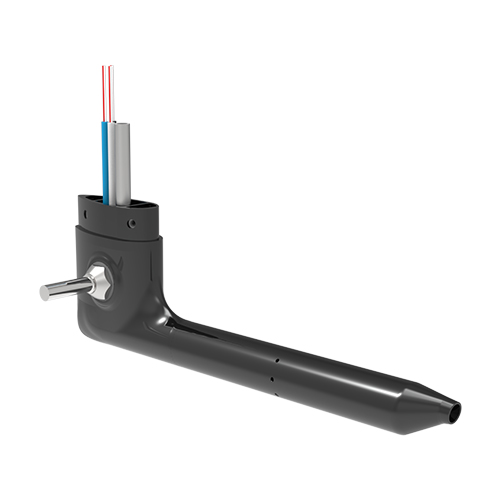

T3000PSP Digital Pitot, Static, AoA Probe System | Non-NORSEE Certified

MICROAIR

Call For Pricing

Available to order

EDMO # 20001824

MFR Part # 20001824

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fully Integrated Probe & Air Data Computer replaces any AN5812 Pitot Probe with no extra hardware or plumbing required. It seamlessly connects to existing pitot systems and delivers redundant Airspeed, Altitude, Vertical Speed, AoA, Temperature, Attitude, and Magnetic Heading digital data to a T3000 skySuite instrument display. Featuring a 120W anti-icing heater (available in 12V or 24V) with digital temperature control, it ensures peak performance in all conditions.

This T3000PSP Digital Pitot, Static, AoA Probe System (EDMO# 20001824) is a Non-NORSEE variant with 12V heater – includes the Digital Pitot, Static, AoA Probe, 2.1-inch Instrument Display, and Harness.

Features

Optional 120W anti-icing heater (available in either 12V or 24V) with digital temperature control
Triple redundant air data sensors provide optimized performance and enhanced safety
Digital technology with a timeless design
Available as a stand-alone system or a fully-integrated component of the T3000 system for Experimental and Light Sport aircraft
Available as a NORSEE* backup system for Certified Aircraft

Specifications

Weight:

200 g (7 oz)
Dimensions:

199 x 64 x 52 mm
Input Power:

11-30 VDC, Less than 1.5 W average
Anti-Icing:

120 W, 12 V heater
Operating Temperature:

-40°C to 55°C
Altitude:

-1,000 to 55,000 ft
Airspeed:

0 to 210 kts
Compliance Standards:

AS6296 AS8002B AS8005A AS8006B ASTM3011-21 DO-334 DO-160G
