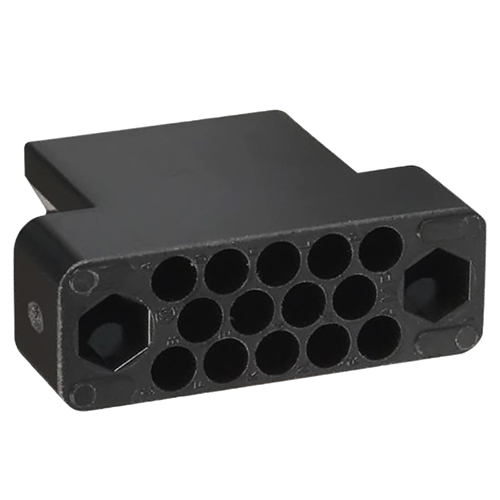

Rectangular Power Connector Housing | 14 Position

Product Description

The 201355-1 rectangular power connect housing is a 14 position plug for connecting cables  to cable and cables to panels.

Specifications

• Dimensions:
  0.915 x 1.25 in (23.24 – 31.75 mm)
• Wire Size:
  30 – 14 AWG (0.05 – 2 mm2)
• Row-to-Row Spacing:
  0.44 in (11.18 mm)
• Connector & Housing Type:
  plug
• Connector System:
  cable-to-cable, cable-to-panel
• Sealable:
  no
• Number of Positions:
  14
• Number of Power Positions:
  14
• Number of Signal Position:
  14
• Number of Rows:
  3
• Operating Voltage:
  250 VAC 250 VDC
• Contact Current Rating:
  13A (maximum)
• Contact Type:
  pin
• Termination Method:
  crimp (to wire & cable)
• Panel Mount Type:
  screw mount
• Connector Mounting Type:
  panel mount
• Centerline (Pitch):
  0.15 in (3.81 mm)
• Housing Color:
  black
• Housing Material:
  phenolic
• Temperature:
  -67°F to 302°F (-55°C to 150°C)
• UL Flammability Rating:
  UL 94V-0

Product Codes

• Mfr Part No
  201355-1
• SCHEDULE B CODE
  8538.90.6000
