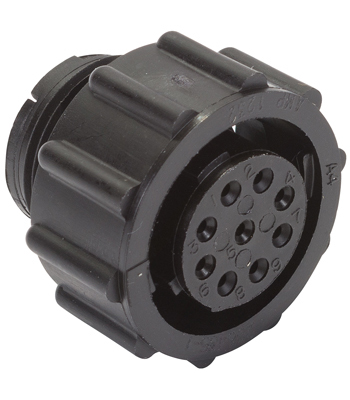

Free Hanging Circular Socket Connector | Shell Size 11, 9 Postion, Free Hanging

CIRCULAR CONNECTOR/9 position, female, shell size 11, free hanging mount, UL 94 V-0 flammability rating, thermoplastic material, threaded, straight angle, 5/8-24 thread size. CPC series 2.

TE CONNECTIVITY

EDMO#: 206485-1

MFR#: 206485-1

Call for Pricing

Tariff fee may apply

Tariff Warning Icon

In Stock

Description

The 206485-1 #11 circular connector features a free-hanging, straight body geometry with a size 20 socket.

Features

  • Free-hanging, straight body geometry
  • 9-postion, size 20 Socket
  • Size 11 shell size

Specifications

Dimensions:
0.975 x 0.800 in, max.

Socket Size:
Size 20

Number of Positions:
9

Connector Type:
standard circular connector

Flammability Rating:
UL 94-0

Housing Material:
thermoplastic

Mating Style:
threaded

Mounting Angle:
straight

Mounting Style:
free hanging

Shell Size:
11

Shell Style:
plug

Thread Size:
5/8-24

Product Codes

Mfr Part No :

206485-1

CSA :

FILE # LR7189

ECCN :

EAR99

SCHEDULE B CODE :

8536.90.4000

UL :

E28476
