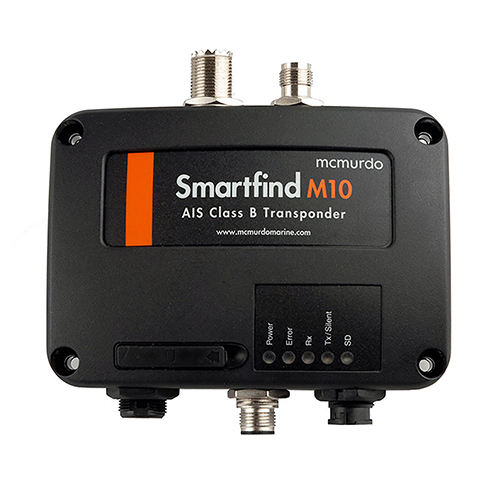

SmartFind M10 AIS Class B Transponder

MCMURDO

Call For Pricing

Available to order

EDMO # 21200001A

MFR Part # 21-200-001A

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SmartFind M10 AIS Class B Transponder sends vessel position information and has a built-in GPS receiver to determine the vessels position, speed and course; and once this is combined with other navigational information, it is automatically transmitted without any user interaction.

Integrating with a wide range of navigation systems, dedicated chart plotters and PC or Mac based software programs, the SmartFind AIS units have advanced interface capabilities for supporting both standard NMEA0183 interfaces as well as USB connectivity. he SmartFind M10 AIS Class B Transponder also has state of the art NMEA2000 duplex interface capabilities to support the latest generation of NMEA2000 navigation display devices.

The SmartFind M10 features a SD card slot for capturing and saving of all messages to assist in system and safety monitoring and incident investigation. A four gigabiyte card will store approximately 30 days worth of data. The "silent mode" option allows the user to temporarily stop broadcasting of identifying information on occasions where either privacy or security could be at risk.

Features

AIS Class B Transponder
GPS
In-built data logger
NMEA 2000
NMEA 0183
USB connectivity
12 VDC & 24 VDC operating voltage
WiFi (M10W version)

Specifications

Weight:

250 g Dimensions: 128 x 36 x 88 mm LED Indications: Power, Error, AIS Rx, Tx/Silent, SD Tx Power Output: 2 watt (33 dBm ±1.5 dB) Rx Sensitivity: NMEA 2000: Connector NMEA 0183: (RS-422), Support two NMEA 0183 interfaces. Baud rate configurable (default 38,400 bps) Separate Tx/Rx baud rate GPS: 50 channel, GPS antenna included Wireless connection: IEEE 802.11 b/g/n (Smartfind M10W only) AIS CH1: 161.975 MHz AIS CH-2: 162.025 MHz Number of Receivers: 2-channel Message Format: AIS Class B Power Supply Voltage: 12/24 VDC Power Consumption: Interface: VHF antenna coupler female Type M (PL 259) NMEA 0183 (38400 default 4800 bps) USB 2.0 supported Temperature: -15°C to 55°C (operating) -25°C to 70°C (storage) Humidity Operation: 0 — 95% RH at 40°C Vibration: IEC 60945 Waterproof: IPX2 Type Approval Certifications: CE, FCC — M10 models only Check the Seas Of Solutions website for additional type approval information
