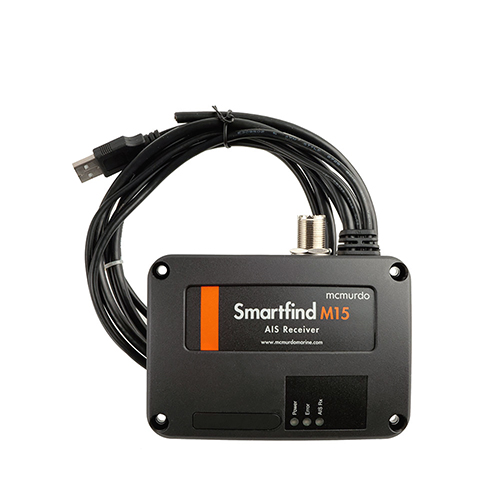

SmartFindM M15 AIS Receiver

MCMURDO

Call For Pricing

Available to order

EDMO # 21300001A

MFR Part # 21-300-001A

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SmartFind M15 AIS Receiver is a low cost receiver that places AIS technology within reach of those on a limited budget. It receives all Class A, Class B, AIS SART, AIS MOB, and AIS Base Station transmissions. The M15 plots the positions directly on a chart plotter or PC/Mac using the supplied PC AIS Viewer software. This unit is compact, easy to install, and set up while supporting integration with existing navigation systems using the standard NMEA0183 or USB interfaces.

Features

AIS Receiver
Dual channel
NMEA
Dual channel AIS receiver
Displays all AIS message types
USB 2.0
12 VDC /24 VDC or USB power
Compact and economical
Splitter (M15S version)

Specifications

Weight:

210 g (includes cable) Dimensions: 128 x 36 x 88 mm Led Indication: Power, Error, AIS Rx, Radio Tx (M15S model only) VHF Radio: M15S Female: Type M (PL 259) VHF Port Insertion Loss: M155 Receiver Pa: 3.5 dB Transmit Path: 1.2 dB USB power option included AIS CH1: 161.975 MHz AIS CH-2: 162.025 MHz Number of Receivers: 2-channel Message Format: AIS Class B Power Supply Voltage: 12/24 VDC Power Consumption: Interface: VHF antenna coupler female Type M (PL 259) NMEA 0183 (38400 default 4800 bps) USB 2.0 supported Temperature: -15°C to 55°C (operating) -25°C to 70°C (storage) Humidity Operation: 0 — 95% RH at 40°C Vibration: IEC 60945 Waterproof: IPX2 Type Approval Certifications: CE, FCC — M10 models only Check the Seas Of Solutions website for additional type approval information
