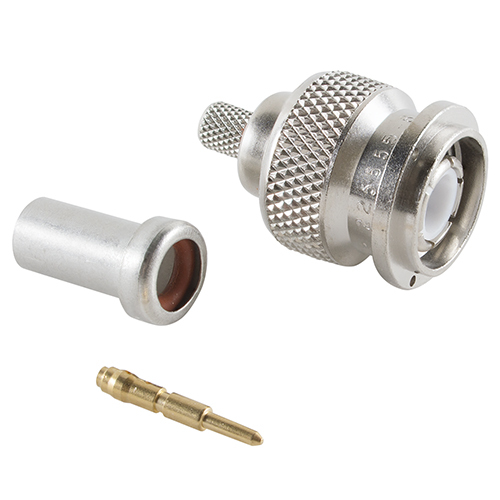

TNC Dual Crimp Straight Connector

TNC Dual Crimp Straight Connector

TE CONNECTIVITY

EDMO#: 225555-6

MFR#: 225555-6

Call for Pricing

In Stock

Also Purchased

Description

225555-6 is a dual crimp, straight, TNC connector plug for use with RG 142, RG 142A, RG 142B, RG 400 coaxial cable.

Features

  • 50 ohms
  • Gold-plated, brass center contact
  • PTFE dielectric material
  • Military Grade
  • Hex-style crimping recommended by manufacturer

Specifications

Dimensions:
16.255 mm (0.64 in)

Cable Type:
RG-142, RG-142A, RG-142B, RG 400

Dielectric Material:
PTFE

Connector Interface:
TNC plug

Impedance:
50Ω

Connector Orientation:
Straight

Body Material:
Nickel-plated brass

Crimp Type:
Dual

Contact Material:
Gold-plated brass

Termination Method:
Crimp

Product Codes

Mfr Part No :

225555-6

MIL SPEC :

MIL-C-39012 CATEGORY B

ECCN :

EAR99

MIL SPEC :

M39012/26-0503

NSN :

5935-01-126-2409

SCHEDULE B CODE :

8536.69.4010
