Model 1421 Scorsby Motion Test Table

IDEAL AEROSMITH

Call For Pricing

Available to order

EDMO # 230010-12

MFR Part # 230010-12

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

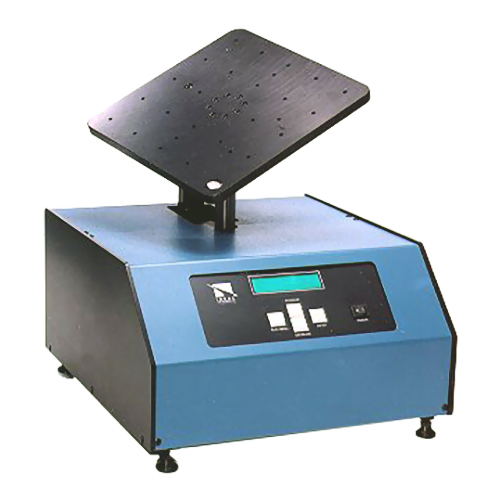

The Model 1421 Scorsby Motion Test Table (EDMO# 230010-12) simulates the roll, pitch, and yaw motions of an aircraft during flight. It is primarily used for production, qualification testing, and exercising of gyroscopic aircraft instruments and is a standard in the aircraft industry. The Scorsby table can be operated from the front panel controls or through the remote communications interface. The front panel controls consist of a power switch, LCD display, and four keys: run/menu, increase, decrease, and enter. Full computer automation is accomplished via the RS-232 interface or an optional IEEE-488 interface. A closed loop motion control system consists of an optical encoder located on the high speed shaft of the gearmotor providing high resolution feedback for smooth Scorsby motion with a constant frequency.

This Model 1421 Scorsby Motion test table (EDMO# 230010-12) operates on 230 VAC at 50/60 Hz, 20 cycles per minute, and includes a pedestal.

Features

Variable speed from 1 to 10 cycles per minute
RS-232 interface
Automatic homing
LCD displays current speed, number of cycles, and shaft position (depending on mode)
Adjustable tilting head with engraved markings
Positive stop allows for quickly setting the tilt head to frequently used positions
Reversible oscillation with electronic cycle counter provides versatile testing from 1 to 99 cycles
Integral bubble level and baseplate screws allows for quick leveling
The motor and drive train is designed for reliability and long life
Small and lightweight design allows for benchtop use
Approved for aircraft gyroscopic instrument testing
Anodized aluminum mounting platform offers durability and corrosion resistance
Ball bearing design provides a smooth motion and extended life
Precision ground tabletop mounting surface

Specifications

Weight:

70 lb (31.8 kg)
Dimensions:

14.5 x 16.5 x 12 in (368 x 417 x 304 mm)
Control Modes:

Off, Left, Right, Oscillate
Tilt Angle Range:

0° to 30°, infinitely adjustable
Tilt Angle Markings:

0°, 1½°, 5°, 7½°, 10°, 15°, 20°, 25°, and 30°
Test Load Capacity:

standard (10 cycles/min.): up to 40 (18) centered loading and up to 25 (11) eccentric loading optional (20 cycles/min.): up to 20 (9) centered loading and up to 10 (5) eccentric loading
Electrical Power Requirements:

standard: 115 Volts, 50/60 Hz optional: 230 Volts, 50/60 Hz
Mount Platform:

10 x 10 in (254 x 254 mm) with square pattern 10-32 UNF threaded holes, 2 in (50.8mm) centers
Cycles in Oscillation Mode:

1 to 99
Remote Interface:

RS-232, standard IEEE-488, optional
Automatic Homing:

Yes
Position/Speed Display:

Yes
Acceleration:

Variable
