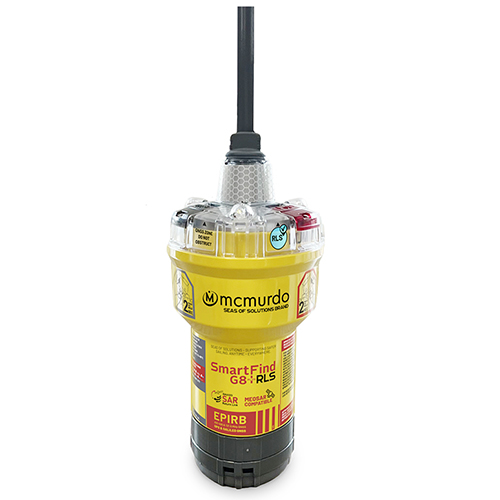

Smartfind G8 PLUS RLS EPIRB | Auto

MCMURDO

Call For Pricing

Available to order

EDMO # 23002500A

MFR Part # 23-002-500A

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SmartFind G8 PLUS range of Satellite EPIRBs include an AIS locating signal, and has the added benefit of Infrared (Night-Vision) optical signal to aid detection of survivors in low light conditions. Infrared is detectable at greater range and in poorer conditions than standard EPIRB lights, therefore further accelerating recovery times.

The SmartFind G8 PLUS RLS EPIRB model (EDMO# 23002500A) has Return Link Service (RLS) capability. This model receives a re-assurance signal, in the form of a blue light, indicating the distress signal has been received and that the user’s location is known by the professional rescue services. This model is auto release.

Features

Built in AIS for localized rescue
Return Link Service reassurance signal
Multi GNSS including Galileo & GPS
Meets the IMO requirement; MSC.471 (101)
Infrared (Night-Vision) optical signal
Accidental activation protection
Rugged construction optimized for commercial environments
Hands free carry strap
360-degree strobe
Comes with safety bracket
10-year battery life
Sealed Electronic Unit
Sealed Battery Unit
Auto release

Specifications

Weight:

710 g
Dimensions:

425 x 105 x 105 mm (including antenna)
Length of Antenna:

225 mm
Transmitter Frequencies:

406.040 MHz, 121.5 MHz, 161.975 MHz (AIS1); 162.025 MHz (AIS2)
Transmitter Power Outputs:

5 W nominal (406.040 MHz), 70 mW nominal (121.5 MHz), 1 W EIRP (AIS)
Transmitter Modulations:

BPSK (406.040 MHz), AM Swept tone (121.5 MHz), GMSK/FM (AIS)
GNSS Receiver Constellations:

GPS, Galileo
GNSS Receiver

Frequencies: 1575.42 MHz (GPS, Galileo)
GNSS Receiver

Sensitivity: -167 dBm minimum
GNSS Receiver

Satellites Tracked: 92 channels
RLS Service Provider:

Galileo
RLS Indicator:

BLUE LED
Optical Homer Day and Night Vision Strobe:

3 points of High Intensity LEDs
Optical Homer

Light Output: 0.75 cd / 2.5 mW/sr minimum
Optical Homer

Flash Rate: 23 flashes per minute
Battery Type:

Lithium iron disulphide
Battery

Operating Life: 48 hours minimum
Battery

Shelf Life: 10 years from date of manufacture
Operating Temperature:

-20 to 55°C (-4 to 131°F)
Storage Temperature:

-30 to 70°C (-22 to 158°F)
Automatic Release Depth:

4 m (max)
COSPAS-SARSAT:

C/S T.001; C/S T.007
Europe/UK:

MED / UKCM
USA:

USCG & FCC
International Standards:

IEC 61097-2 ED4 IEC 60945 incl. Corrigendum1 (Portable) IEC 61108-1 (GNSS variant) RTCM 11000.5 ITU-R M.1371-5 Industry Canada RSS-287 AS/NZS 4280.1
IMO Regulations:

MSC.471(101): A.662(16); A.694(17); A.814(19)
