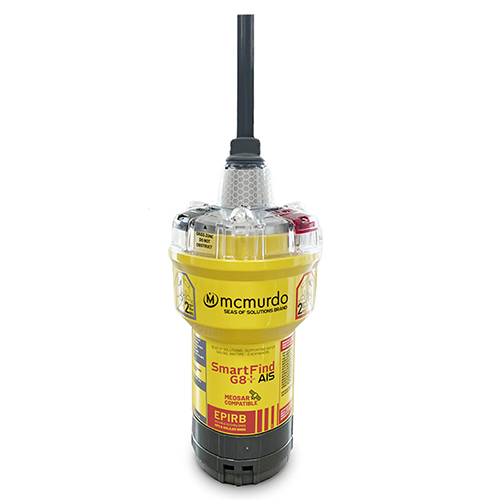

Smartfind G8 PLUS AIS EPIRB | Auto

Product Description

The SmartFind G8 PLUS range of Satellite EPIRBs include an AIS locating signal, and has the added benefit of Infrared (Night-Vision) optical signal to aid detection of survivors in low light conditions. Infrared is detectable at greater range and in poorer conditions than standard EPIRB lights, therefore further accelerating recovery times.

This model (EDMO# 23002501A) is auto release.

Specifications

• Weight:
  710 g
• Dimensions:
  425 x 105 x 105 mm (including antenna)
• Length of Antenna:
  225 mm
• Transmitter Frequencies:
  406.040 MHz, 121.5 MHz, 161.975 MHz (AIS1); 162.025 MHz (AIS2)
• Transmitter Power Outputs:
  5 W nominal (406.040 MHz), 70 mW nominal (121.5 MHz), 1 W EIRP (AIS)
• Transmitter Modulations:
  BPSK (406.040 MHz), AM Swept tone (121.5 MHz), GMSK/FM (AIS)
• GNSS Receiver Constellations:
  GPS, Galileo
• GNSS Receiver
  Frequencies: 1575.42 MHz (GPS, Galileo)
• GNSS Receiver
  Sensitivity: -167 dBm minimum
• GNSS Receiver
  Satellites Tracked: 92 channels
• Optical Homer Day and Night Vision Strobe:
  3 points of High Intensity LEDs
• Optical Homer
  Light Output: 0.75 cd / 2.5 mW/sr minimum
• Optical Homer
  Flash Rate: 23 flashes per minute
• Battery Type:
  Lithium iron disulphide
• Battery
  Operating Life: 48 hours minimum
• Battery
  Shelf Life: 10 years from date of manufacture
• Operating Temperature:
  -20 to 55°C (-4 to 131°F)
• Storage Temperature:
  -30 to 70°C (-22 to 158°F)
• Automatic Release Depth:
  4 m (max)
• COSPAS-SARSAT:
  C/S T.001; C/S T.007
• Europe/UK:
  MED / UKCM
• USA:
  USCG & FCC
• International Standards:
  IEC 61097-2 ED4 IEC 60945 incl. Corrigendum1 (Portable) IEC 61108-1 (GNSS variant) RTCM 11000.5 ITU-R M.1371-5 Industry Canada RSS-287 AS/NZS 4280.1
• IMO Regulations:
  MSC.471(101): A.662(16); A.694(17); A.814(19)

Product Codes

• Mfr Part No
  23-002-501A
• SCHEDULE B CODE
  8517.69.0000
