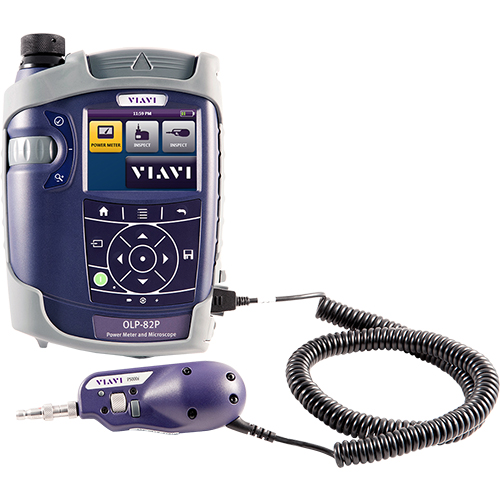

OLP-82 SmartClass Fiber Inspection-Ready Optical Power Meter

VIAVI

Call For Pricing

Available to order

EDMO # 2315/01

MFR Part # 2315/01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The new SmartClass Fiber Family of optical handheld tools integrate automatic pass/fail certification for inspecting fiber and measuring optical power with one portable device. SmartClass Fiber devices give technicians ultimate flexibility and performance in one powerful, easy-to-use device that instantly turns them into fiber-smart technicians. Cut testing and certification time in half and give customers confidence in their network quality at the push of a button with SmartClass Fiber Handheld solutions.

The OLP-82 (EDMO #2315/01) features a digital handheld video display and an integrated optical power meter.

Features

Complete jobs faster, correctly, and on time— the first time
Eliminate subjective guesswork with pass/fail analysis results
Easily generate certification reports
Flexibility for use anywhere
Provide certification reports with pass/fail fiber connectivity analysis
Standardize fiber inspection, analysis, and testing methods throughout the fiber network
Install, test, and maintain fiber systems where portability is essential, such as in FTTX, BPON/EPON/GPON, FTTA, and data centers
Automated pass/fail analysis for fiber inspection and test
Store all fiber inspection and test results on board
Easily generate fiber certification reports
3.5” color touch screen user interface

Specifications

Weight:

1.6 lbs (750 g)
Dimensions:

8.2 x 4.4 x 2.5 in ( 208 x 112 x 64 mm)
Operating Temperature:

14 to 122°F ( -10 to +55°C)
Storage Temperature:

-4 to 158°F ( -20 to +70°C)
Display High:

Contrast 3.5” color LCD touch screen (4:3 ration)
Fiber Inspection:

Via external P-5000i or via patch cord microscope (P-variants)
Data Storage:

10,000 results
Data Download Capability:

Via USB interface
Remote Control Capability:

Via USB or Ethernet
Electrical Interfaces:

2x USB-A, 1x micro-USB, 1x Ethernet
Wireless Interfaces:

WiFi or Bluetooth
Dry Batteries:

8x Mignon (AA) Alkaline 1.5 V
Battery Pack:

1x Li-ion pack 3.7 V
AC Operation:

Via Universal Power Adapter
Operating Time:

12 hrs. (OLP) with the dry batteries
Photo Diode:

InGaAs
Spectral Range:

Broadband (780–1650 nm)
Wavelength Setting:

780–1650 nm, step size 1 nm
Resolution:

0.01 dB, 0.001 µW
Measurement Range for Power Level:

-65 to 10 dBm
Max. Power Level:

10 dBm
Measurement Uncertainty:

± 0.2 dB (intrinsic)
Linearity:

± 0.06 dB²
Calibrated Wavelengths:

850, 1310, 1490, 1550, 1625 nm
Tone Detection:

CW, 270 Hz, 1 kHz, 2 kHz
Optical Connectors:

1x UPP 2.5 mm
Recommended Calibration Interval:

3 years
EMI/ESD:

CE compliant
