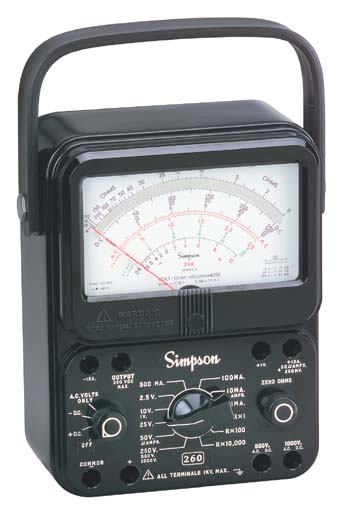

Simpson 260 Series 8 Analog Multimeter

EDMO DISTRIBUTORS, INC

Call For Pricing

Available to order

EDMO # 260-8

MFR Part # 62F300

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Nothing beats a Simpson 260-8 for monitoring fluctuating trends and rates. Portable yet with bench top accuracy, the 260-8 is ideal for use anywhere. The 260-8 features standard and high-energy fusing in conjunction with diode network meter movement protection—making it the best combination of quality and affordability.

The 260-8 is provided with calibration certificate, batteries, manual and full-size test leads with threaded probe tips and screw-on alligator clips.

Features

Easy to operate -- two knobs control the selection of functions and ranges
More than 20 measurement ranges for DC voltage and current, AC voltage and current, resistance
Large, tri-colored dial with mirrored scale to prevent parallax error
Reverse recessed safety jacks prevent operator and tool contact with electrical connections
Rugged phenolic case with reinforced walls for maximum durability
Self-shielding taut-band meter movement provides added shock resistance

Specifications

Weight:

3 lbs. (1.4 Kg)
Dimensions:

7 x 5.5 x 3.1 in (18 x 14 x 8 cm)
Batteries:

1.5V D, 9V (Neda No.13F, 1604A)
Fuse:

F1 1A, 250V, type 3AG, quick acting Littlefuse® Type 312001, F2 2A, 600V Littlefuse® Type BLS or 2A 600V, Bussman® Type BBS
AC Current:

Up to 250 AC Amps with AC-Clamp Adapter
AC Voltage:

Range: 250mV, 1V, 2.5V, 10V, 25V, 50V, 250V, 500V, 1000V Accuracy: 3% of full scale Sensitivity: 5K ohm per volt
DC Current:

Range: 50μA, 1mA, 10mA, 100mA, 500mA, 10A Accuracy: 2% of full scale Sensitivity: 20K ohm per volt
DC Voltage Range:

250mV, 1V, 2.5V, 10V, 25V, 50V, 250V, 500V, 1000V
