MS27212-1 Terminal Block | 7 studs

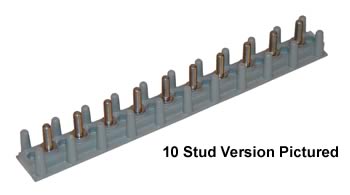

TERMINAL BLOCK/6-32, 7 stud

EDMO DISTRIBUTORS, INC

Call For Pricing

Available to order

EDMO # 27212-1-7

MFR Part # MS27212-1-7

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Terminal blocks are molded in high quality, dimensionally stable DAP thermoset material which provides excellent dielectric strength – even at temperatures and in moist environments. Then can be cut to length to accommodate any job.

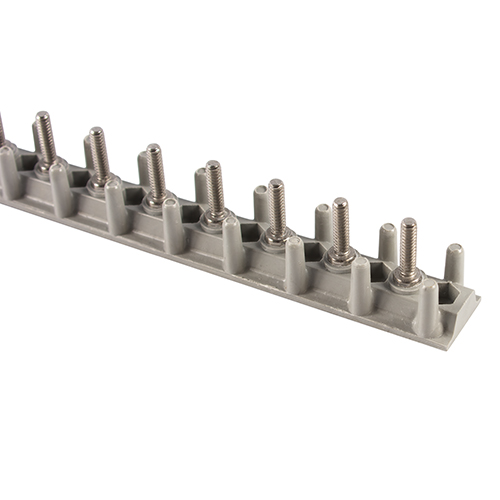

This terminal block (EDMO# 27212-1-7) has seven mounting studs with 6/32-inch UNF-2A/20 thread size.

Features

Constructed of diallyl isophalate plastic (per Federal standard GDI-20F and MIL-M-14)
425°F to 500°F maximum operating temperature
Compatible with MS180029 terminal block covers and MS25226 bus bars

Specifications

Number of Studs:

7
Stud Spacing:

0.594 in
Stud Thread Size/Max:

6/32-inch UNF-2A/20

Product Codes

Mfr Part No

MS27212-1-7
MIL SPEC

MS27212-1-7
ECCN

EAR99
MIL SPEC

MS27212-1-7
SCHEDULE B CODE

8536.69.4030
