MS27212-6 Terminal Block | 12 studs

TERMINAL BLOCK/8-32, 12 stud

EDMO DISTRIBUTORS, INC

Call For Pricing
Available to order
EDMO # 27212-6-12
MFR Part # MS27212-6-12
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Terminal blocks are molded in high quality, dimensionally stable DAP thermoset material which provides excellent dielectric strength – even at temperatures and in moist environments. Then can be cut to length to accommodate any job.

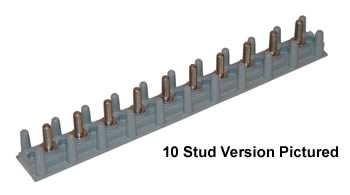

This terminal block (EDMO# 27212-6-12) has 12 mounting studs with 8-32 UNF-2A16 thread size.

Features

  • Constructed of diallyl isophalate plastic (per Federal standard GDI-20F and MIL-M-14)
  • 425°F to 500°F maximum operating temperature
  • Compatible with MS180029 terminal block covers and MS25226 bus bars

Specifications

  • Number of Studs:
    12
  • Stud Spacing:
    0.75 in
  • Stud Thread Size/Max:
    8-32 UNF-2A16

Related Products

Product Codes

  • Mfr Part No
    MS27212-6-12
  • MIL SPEC
    MS27212-6-12
  • ECCN
    EAR99
  • MIL SPEC
    MS27212-6-12
  • SCHEDULE B CODE
    8536.69.4030
