V73263 Coaxial Cable | 75 Ω

V73263 Coaxial Cable | 75 Ω

EDMO DISTRIBUTORS, INC

Call For Pricing
Available to order
EDMO # V73263
MFR Part # V73263
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

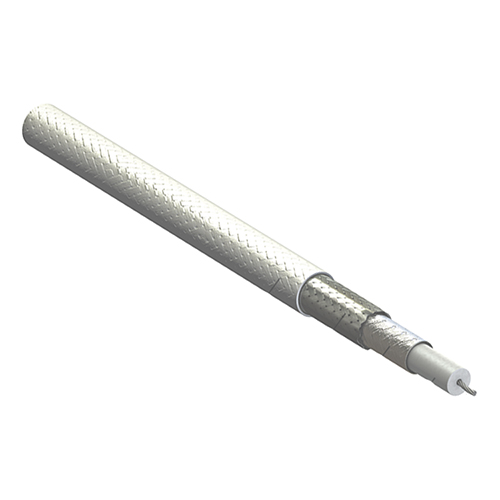

V73263 is a 75 ohm coaxial cable with low VSWR and attenuation characteristics for high-definition digital video applications. The V73263’s construction includes a silver-plated copper center conductor, a foamed fluoropolymer dielectric and is double-shielded with a helically-wound silver-plated copper strip and a tin-plated copper braid. This combination yields better than -110 dB shielding effectiveness. Because of the critical effect of impedance-matched terminations, a comprehensive family of 75 ohm connectors are available.

Features

  • Silver-Plated Copper conductor
  • FEP dielectric
  • Shield #1: Silver-Plated Cooper spiral wrap
  • Shield #2: Tin-Plated Copper Braid
  • Extruded ETFE, White (laser markable) jacket

Specifications

  • Conductor:
    26 AWG Stranded SPC
  • Temperature Range:
    -55° to 150 °C
  • Outer Diameter:
    0.13 in (3.18 mm)
  • Minimum Bend Radius:
    0.65 in (16.51 mm)
  • Weight:
    1.50 lb/100 ft (2.20 kg/100 m)

Product Codes

  • Mfr Part No
    V73263
