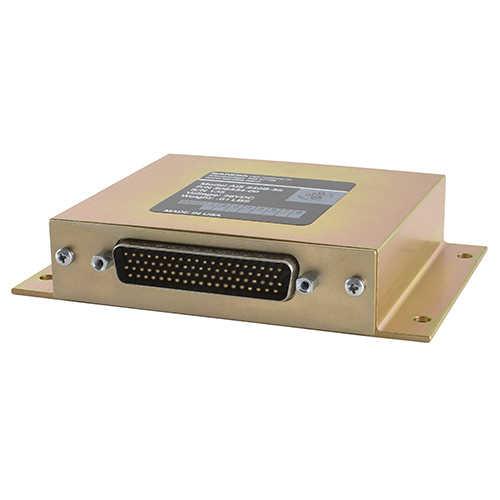

AIS 240B-35 Switching Module | 28VDC, For MARC 35

Product Description

The AIS240A-35 is a multi-purpose switching unit, consisting of six, four pole relays for a total of 24 poles of switching capabilities. The relays are arranged in a group of four (16 poles) and two single relays (4 poles each). The relays can be activated by either a ground or 28 Vdc, maximizing installation flexibility. The AIS240A-35 uses gold plated dry contacts that are sealed in nitrogen filled cases. The rugged construction makes them ideal switching units for both fixed wing and helicopter operations.

Specifications

• Weight:
  0.50 lb
• Dimensions:
  5.13 x 3.46 x 1.2 in
• Operation Voltage:
  28 VDC
• Current:
  160 mA, will all relays engaged
• Operation Temperature:
  -20°C to 55°C, maximum
• Operating Altitude:
  50,000 ft, maximum
• Contact Rating:
  1.0A @ 30 VDC
• Certification:
  FAA-PMA pending

Product Codes

• Mfr Part No
  306434-00
• ECCN
  7A994
• SCHEDULE B CODE
  9014.20.8040
