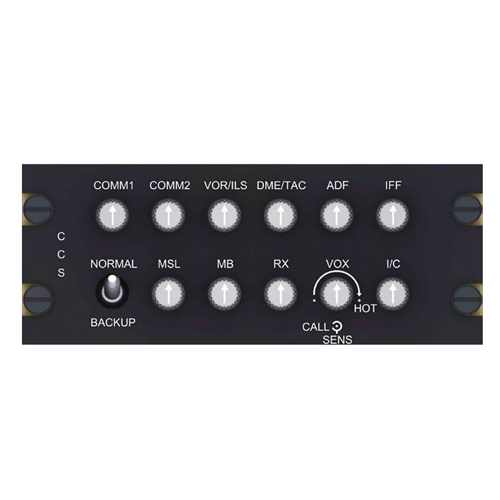

Model 344 Single-User Audio Control Panel

CANYON AEROCONNECT

Call For Pricing

Available to order

EDMO # 344-002

MFR Part # 344-002

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Model 344 Single-User Audio Control Panel provides cockpit audio control functions for one pilot, with additional interphone capability for a RAMP (ground) operator. All audio signal management and processing is done within the 344, eliminating the need for a remote-mounted audio management unit. This results in reduced acquisition and installation costs and reduced system weight without sacrificing vital system performance in the trainer.

The 344 is designed with a flexible control and front panel configuration to meet a variety of customer-specific operational needs. The front-edge lit panel is available with NVIS or standard incandescent lighting.

Features

Radio-specific on/off volume controls
VOX and keyed interphone
Integrated aural warning generator
NVIS-compatible lighting (optional)
CVR and recorder outputs
Dimensions: 2.25 x 5.75 x 5.0 in (57.15 x 146.05 x 127 mm)
Weight: 2.2 lb (0.998 max.)
TSO-C139 Compliance: DO-214 and DO-160E

Specifications

Height:

2.25” in (5.72 cm)
Width:

5.75 in (14.61 cm)
Length:

5.00” (12.7 cm) excluding mating connectors
Weight:

2.2 lb (0.998 kg max) Compliance: TSO-C139, D0-214 and DO-160E Env. Cat. [(A2)(F2)X]BBB[(RBB1)(U2FF1) (SC)]XRXDFSZ[BZ]AZA[RR] M[XXC4X]XXAX
