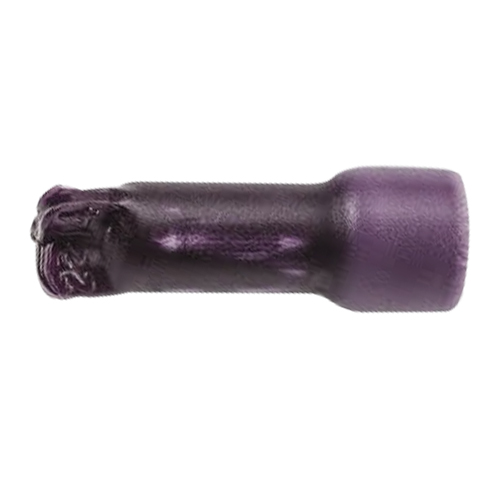

Bomb Tail Closed End Splice Connector | 22-14 AWG, Purple

Product Description

Bomb tail splices consist of a precision formed metal wire barrel encased in vinyl insulating material. The vinyl material used as an insulation for the splices is highly resistant to abrasion and will resist temperatures up to 90º C (194º F). The splice fins are marked with the A logo, the wire range of the splice, letter coding that indicates the maximum voltage and temperature for the splice (VS or ECV), and listing agency (UL or CSA). The wire size marking indicates the range of wire sizes that can be used in combination in the splice.

Specifications

• Wire size:
  22-14 AWG
• Wire insulation diameter:
  0.187 in. (4.75 mm)
• Splice material:
  Copper
• Plating material:
  Tin
• Color:
  Purple
• Insulation sleeve material:
  PVC

Product Codes

• Mfr Part No
  TYC 36964
• ECCN
  EAR99
• SCHEDULE B CODE
  8803.90.9010
