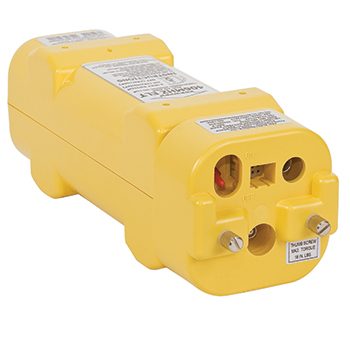

G406-4 ELT | Single Output, Mounting Frame Assembly

ACR ELECTRONICS / ARTEX

Call For Pricing

Available to order

EDMO # 453-5012

MFR Part # 453-5012

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The G406-4 transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz). The system was designed for use with the general aviation market in mind. The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. The G406-4 also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.

The G406-4 has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests.

Features

This G406-4 ELT (EDMO# 453-5012) includes:
G406-4 transmitter
Mounting tray
Top Cover
Mounting Frame Cap
Features:
Transmits on all 3 emergency frequencies
Automatically activates during a crash and transmits the standard swept tone on 121.5 & 243.0 MHz
Transmits a 406.025 MHz encoded digital message to the Cospas/Sarsat satellite system
Tested to meet the TSO C126 requirements as well as 500 G shock, 1000 pound crush & flame and vibration tests
May be interfaced with the Artex ELT/NAV which enables latitude & longitude data to be transmitted

Specifications

Weight: ELT Transmitter: 3 LB 5.8 oz Maximum (1.53 Kg)
Measurements (with Mounting Hardware) : 11.74 x 3.90 x 3.82 in (298 x 99 x 97 mm)
Operating Frequencies: 406 MHz, 121.5 & 243. MHz +/- 0.005% (A3X)
Output Power: 406 MHz: 5 W ± 2 dB (520 ms / 50 sec) for 24 hours @ -20° C 121.5/243.0 MHz: 100 mW minimum (+20 dBm) for 50 hours @ -20° C
Output Connector: BNC Female (121.5/243 MHz) TPS Female (406 MHz)
Activation: Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or Manual Activation
Battery: 5 year Lithium (LiMnO2, solid cathode)
Temperature Certified to: Operating: -20° C to +55° C Storage: -55° C to +85° C
Self Test: G-Switch enabled 406 MHz Power Antenna/Coax Connection Position Data Present Low Battery
Remote Control: ON/ARM
