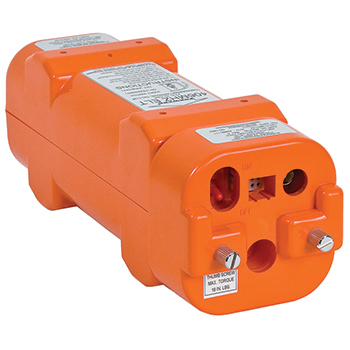

C406-1 ELT System | Single Output

C406-1 ELT System | Single Output

ACR ELECTRONICS / ARTEX

EDMO#: 455-5002

MFR#: 455-5002-366

Description

The C406 series Emergency Locator Transmitter is an automatic fixed type ELT which transmits on 121.5, 243.0, and 406 MHz frequencies. In the event of a crash the ELT automatically activates transmitting the standard swept tone on 121.5 and 243.0 MHz. It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.

Model C406-1 is a single BNC output ELT with an automatic G-switch for fixed wing applications. Compatible with optional Nav Interface.

Features

Version 455-5002 includes:

  • C406-1 ELT
  • Lithium battery
  • Install kit (455-7421)
  • Mounting tray (452-5050)
  • Top cover (452-3052)
  • Mounting cap (452-5052)
  • Buzzer (130-4004)

Features:

  • Operates on 121.5, 243, and 406 MHz frequencies for global coverage
  • RF output
  • Rod, whip, and blade antenna compatible
  • Compatible with aircraft navigation system with optional interface
  • Automatic or manual activation
  • 5-year lithium battery
  • Self tests: G-Switch Enabled, 406 MHz Power Antenna/Coax Connection, Position Data Present, and Low Battery

Specifications

Weight:
3.16 lb (1.43 kg), ELT transmitter
4.24 lb (1.9 kg), total weight with mounting frame assembly

Dimensions:
11.74 x 3.9 x 3.82 in, with mounting hardware installed

Model:
C406-1

Antenna:
Not included

Operating Frequencies:
406 MHz, 121.5 MHz, 243 MHz ±0.005% (A3X)

Output Power:
406 MHz: 5W (520 ms/50 sec) for 24 hours @ -20°C to 55°C
121.5/243.0 MHz: 100 mW min (+20 dBm) for 50 hours @ -20°C to 55°C

Output Connector:
BNC Female (121.5/243.0/406 MHz)

Activation:
Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or Manual Activation

Battery:
5-year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133

Temperature Certified to:
Operating: -20°C to 55°C, Storage: -55°C to 85°C

Remote Switch:
Not included

Product Codes

Mfr Part No :

455-5002-366

ECCN :

7A994

ETSO :

2C126

PROG REQ :

C406-G406

SCHEDULE B CODE :

8525.10.8040

TSO :

C126
