Vena MT Flexible Aircraft Ducting | 5/8in, 13ft

Vena MT Flexible Aircraft Ducting | 5/8in, 13ft

VENAIR

Call For Pricing
In stock
EDMO # 50011-16
MFR Part # 500110000016
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

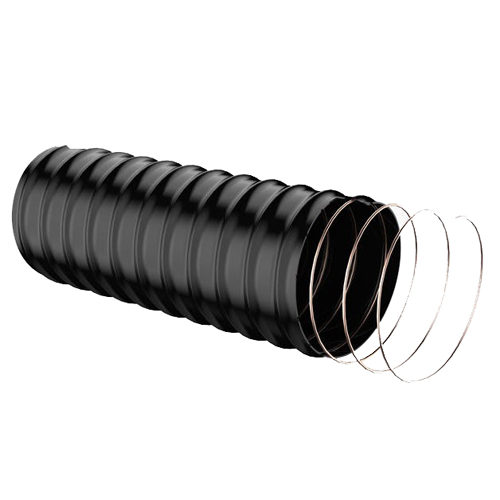

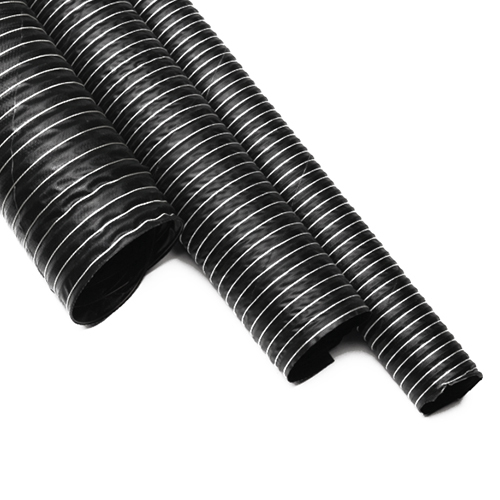

Ideal in the cooling of electronic units, the Vena® MT Medium Temperature Hose is an industrial neoprene ducting for conveying air or gaseous fluids at medium temperatures with high flexibility and high resistance to aging. The MT version has one layer of fiberglass with neoprene and visible steel wire spiral inside the hose.

This product is recommended for air ventilation, extraction of engine fumes, cooling of electronic units, and welding gas aspiration. The material is in compliance with the RoHS Directive 2002/95/EC and its subsequent amendments including the RoHS2 Directive 2011/65/EU and RoHS3 Directive 2015/863.

Version 50011-16 has a 5/8 in. diameter and 13' length.

Features

  • Conveys air from cooling fans to electronics
  • Rated for medium temperatures -55ºC to 125ºC
  • High resistance to aging
  • Excellent flexibility
  • One fiberglass reinforced textile
  • Neoprene rubber compound
  • Coated with steel wire

Also Purchased

Specifications

  • Diameter:
    5/8 in.
  • Length:
    13 ft
  • Temperature:
    -55ºC to 125ºC (-67°F to 257°F)
  • Material
    : ECO material - Special flame retardant neoprene classified as HL3 according to EN-45545-2 standard
  • Connections
    : Smooth cuff ends for a better connection
  • Outer Layer:
    Neoprene, corrugated and black.
  • Inner Layer:
    Neoprene, corrugated and black.
  • Reinforcement:
    One layer (MT) or two layers (MTD) of fiberglass and steel wire spiral.

Product Codes

  • Mfr Part No
    500110000016
  • ECCN
    EAR99
  • SCHEDULE B CODE
    3917.29.0090
