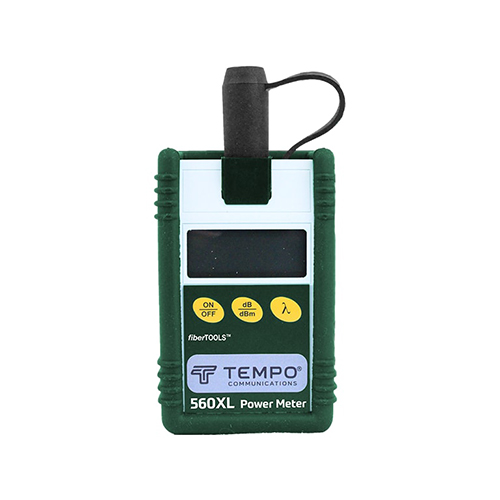

560XL-EMI Optical Power Meter

TEMPO COMMUNICATIONS

Call For Pricing

Available to order

EDMO # 560XL-EMI

MFR Part # 560XL-EMI

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 560XL-EMI Optical Power Meter is the perfect tool for installing and testing fiber optic cabling. The 560XL-EMI can be used to measure optical power, or can be used in conjunction with a LED or laser source for insertion loss testing on multi- and single-mode fiber optic cabling. The 560XL-EMI measures optical power at 850nm, 1300nm, 1310nm, and 1550nm. It can store reference levels for faster, more efficient testing. The 560XL-EMI also uses a Snap On Connector (SOC) interface for use with FC, SC, ST, and many other available connectors.

Features

Easy to use - three buttons control all functions
Rugged, splash-proof design
Engineered for use in areas with high electrical interference
Stores and recalls reference power levels for faster, more efficient measurements
Enhanced EMI performance: MIL-STD-461E, Method RS103, tested to 190 V/m
Loss measurements in dB; power measurements in dBm

Specifications

Weight:

8.5 oz. ( 241g)
Dimensions:

2.8 x 5.6 x 1.4 in. (7.2 x 14.2 x 3.5 cm)
Calibration Wavelengths:

850, 1300, 1310 and 1550nm
Power Range:

+3 dBm to -60 dBm
Accuracy:

±0.25dB
Linearity:

+3dBm to -3dBm: ±0.5dB -3dBm to -50dBm: ±0.05dB -50dBm to -60dBm: ±0.5dB
Resolution:

0.01dB
Power Requirements:

Two AA size 1.5V batteries (approx. 100 hours continuous operation)
Connector interface:

SOC
Specification

Operating temperature: 5 to 131°F (-15 to 55°C)
Storage temperature:

-31 to 158°F (-35 to 70°C)
Humidity:

0 to 95% (non-condensing)
CE:

EN61010; EN50081-1: 1992; EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4
