64303B Rectangle Clamp | 4.975 x 5.022 in, 2.5 in Depth

Product Description

MSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel.

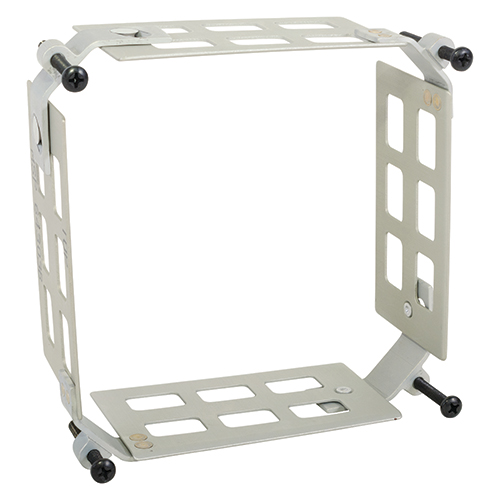

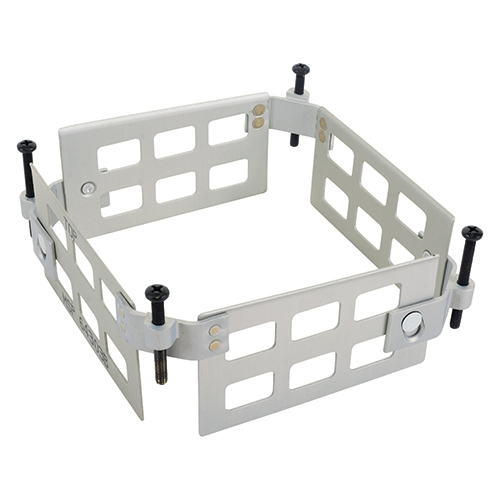

This Rectangle ATI avionics clamp (EDMO# 64303B) measures 4.975 x 5.022 inches, with a 2.5-inch mounting depth and constructed of light weight aluminum with an anodized finish.

Specifications

• Type:
  Arinc
• Shape:
  Rectangular
• Working Size:
  4.975 x5.022 ±0.015 in
• Depth:
  2.5 in (on angle)
• Mounting Hole Location:
  4.857 x 4.810 ±0.005 in
• Material:
  Aluminum
• Finish:
  Anodized

Product Codes

• Mfr Part No
  64303B
