64435B1038 ARINC Clamp | 3 x 3 in., 4 in. Depth, Anodized Finish

Product Description

MSP Aviation avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film or anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel.

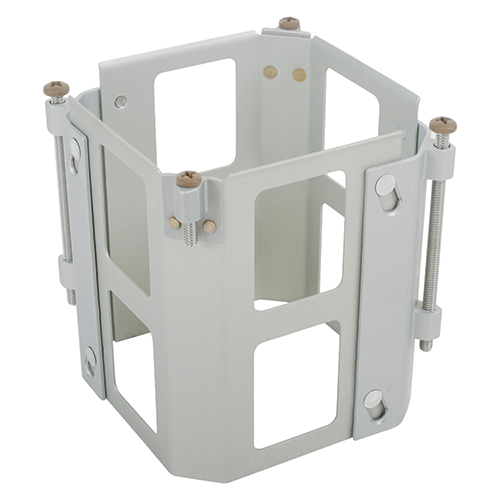

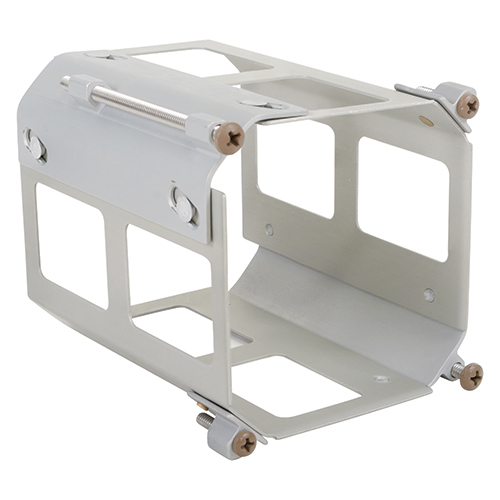

This 3 ATI avionics shelf clamp (EDMO# 64435B1038) measures 3 x 3 inches, with a 4-inch mounting depth and constructed of light weight aluminum with an anodized finish.

Specifications

• Type:
  Arinc
• Shape:
  Square
• Working Size:
  3.175 x 3.175 in
• Depth:
  4 in
• Mounting Hole Location:
  3.060 x 3.060 in
• Material:
  Aluminum
• Finish:
  Anodized

Product Codes

• Mfr Part No
  64435B-1038328
