64626B Angle ARINC Clamp | 5 in, 2 in Depth, 6° Angle, Chem-Film Alodine Finish
MSP AVIATION
EDMO#: 64626B
MFR#: 64626B
Description
MSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel.

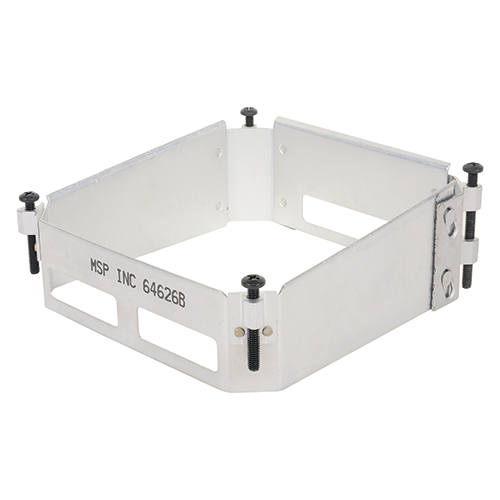

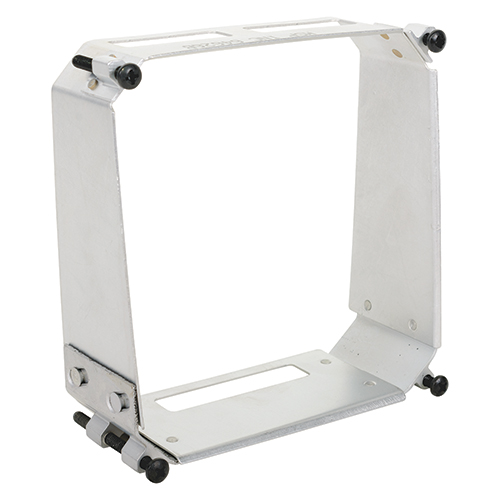

This avionics shelf clamp (EDMO# 64626B) measures 5 inches, with a 2-inch mounting depth and constructed of light weight aluminum with a chem-film alodine finish.
Features
- Simplifies avionic equipment retrofits for replacement or repair
- Does not require removal of the entire panel
- Anti-corrosion Chem-film, anodized aluminum finish
Specifications
Shape:
Arinc
Size:
5 in
Depth:
2 in
Material:
Aluminum
Finish:
Chem-Film (Alodine)
Associated Screw Component Number:
MS35214-47, MS35214-50
Product Codes
Mfr Part No :
64626B
