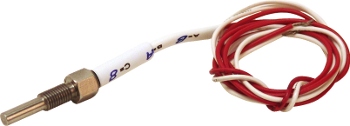

O.A.T. Temperature Probe Assembly Kit

O.A.T. Temperature Probe Assembly Kit

SHADIN LP

EDMO#: 681201-1

MFR#: 681201-1

Description

The 681201-1 OAT Probe Assembly will provide very accurate measurements of Outside Air Temperature (OAT) for inputs to the Air Data Computer and other airborne systems. The OAT Probe Assembly produces an output current proportional to absolute temperature.

Features

  • Provides outside air temperature data
  • Mountable in any location along the bottom of fuselage
  • 24 inch lead wires
  • Includes all required install components

Specifications

Weight:
0.06 lb

Dimensions:
2 in. length, 0.359 in. diameter, 24"" lead wire

Power supply voltage:
4 - 30 VDC

Temperature:
-55ºC to 150ºC

Altitude:
55,000 ft

Product Codes

Mfr Part No :

681201-1

ECCN :

7A994

PROAPP :

PT2088CE

SCHEDULE B CODE :

9025.80.5050

TSO :

C43a
