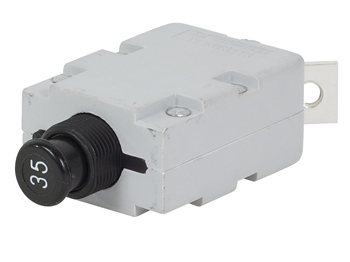

35 AMP CIRCUIT BREAKER

Product Description

700 Series Circuit Breaker:

Qualified
To MS25244, MS25244-P and
MS25244-PT of MIL-C-5809
(MS25244PT is a substitute for
MS25017).

Lightweight
Circuit breaker weighs only 43
grams.

High Interrupting Capacity
Interrupts a 6,000A circuit at
30V, DC; 3,500A circuit at 120V,
400 Hz. AC.

Performance Rated Circuit
Breaker
Exceeds military specification
requirements for durability,
vibration, mechanical shock,
and acceleration.The 700 is a
miniature push-pull breaker
offering fast trip and high interrupting
capacity. Its trip-free
design prevents the breaker
from being held closed manually
on overloads.
A feature of the breaker is separate
overload and mechanical
latches. Separated in this way,
the mechanical latch assures
maximum endurance for the
thousands of cycles of manual
on-off operation, while the thermal
latch combines both precise
operation and durability.

Bushing and Flush Mounting
Capability

Hardware included.

Product Codes

• Mfr Part No
  700-001-35
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.20.0020
