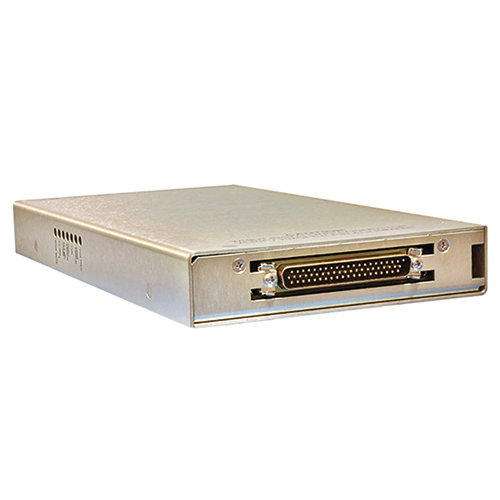

Model 700 Digital Audio Control Amplifier | For Raytheon PFP3 King Air


CANYON AEROCONNECT

Call For Pricing
Available to order
EDMO # 700-006
MFR Part # 700-006
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The compact, lightweight Model 700 Digital Audio Control Amplifier pairs with the Model 800 Series Digital Audio Controllers which are commonly used in corporate and special mission fixed-wing aircraft like the Beechcraft King Air. The combination of these units provides microphone audio switching and keying operations for radio transmitters, receivers, and passenger address amplifier control.

This Model 700 Digital Audio Control Amplifier (EDMO# 700-006) is designated for Raytheon PFP3 King Air. The levels are no different than those of the base Model 700 and also has no difference in test procedure.

Features

  • Inputs:
  • 15 receiver/transceiver inputs
  • 6 dedicated audio sidetone inputs
  • 4 unswitched and unmuted auxiliary inputs
  • Interphone
  • Outputs:
  • Headphone
  • Cockpit speaker
  • CVR
  • Selected COMM
  • Interphone

Specifications

  • Weight:
    1.6 lb
  • Dimensions:
    10.45 x 1.13 x 5.1 in.
  • Power:
    28V, 1 amp max
  • TSO C50c Compliance:
    DO-160C, DO-178A Level 2

Product Codes

  • Mfr Part No
    700-006
