Model 700-xxx Digital Audio Control Amplifier | Switch Panel


CANYON AEROCONNECT

Call For Pricing
Available to order
EDMO # 802-009
MFR Part # 802-009
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

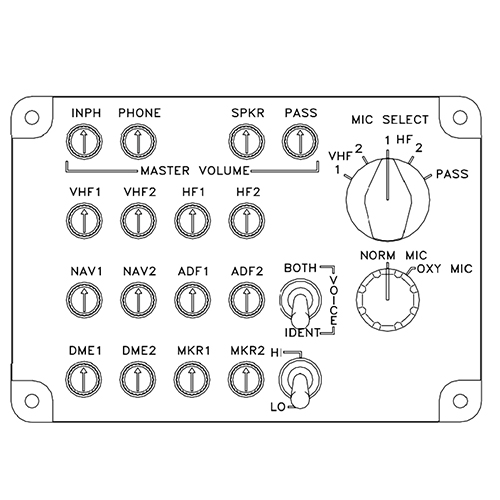

The 802-009 Switch Panel is designed to control a single Model 700 series Digital Audio Control Amplifier. This unit is customizable and provides control for up to four transceivers, eight receivers, and a public address system.

Features

  • Provides microphone audio switching and keying operations for four transmitters
  • Provides antenna switching control, marker beacon sensivity control, and PA amplifier control

Specifications

  • Weight:
    3 lb (1.4 kg)
  • Dimensions:
    3.93 x 6.03 x 5.67 in (99.8 x 153.2 x 144 mm)
  • Mounting:
    Panel mount with four 8-32 screws
  • Connector:
    55-pin
  • Faceplate:
    Grey with white text
  • Temperature:
    -55°C to 70°C
  • Altitude:
    70,000 ft
  • Input Power:
    28 VDC, 0.3A max.
  • Lighting:
    0 – 115 VAC, 400 Hz

Product Codes

  • Mfr Part No
    802-009
