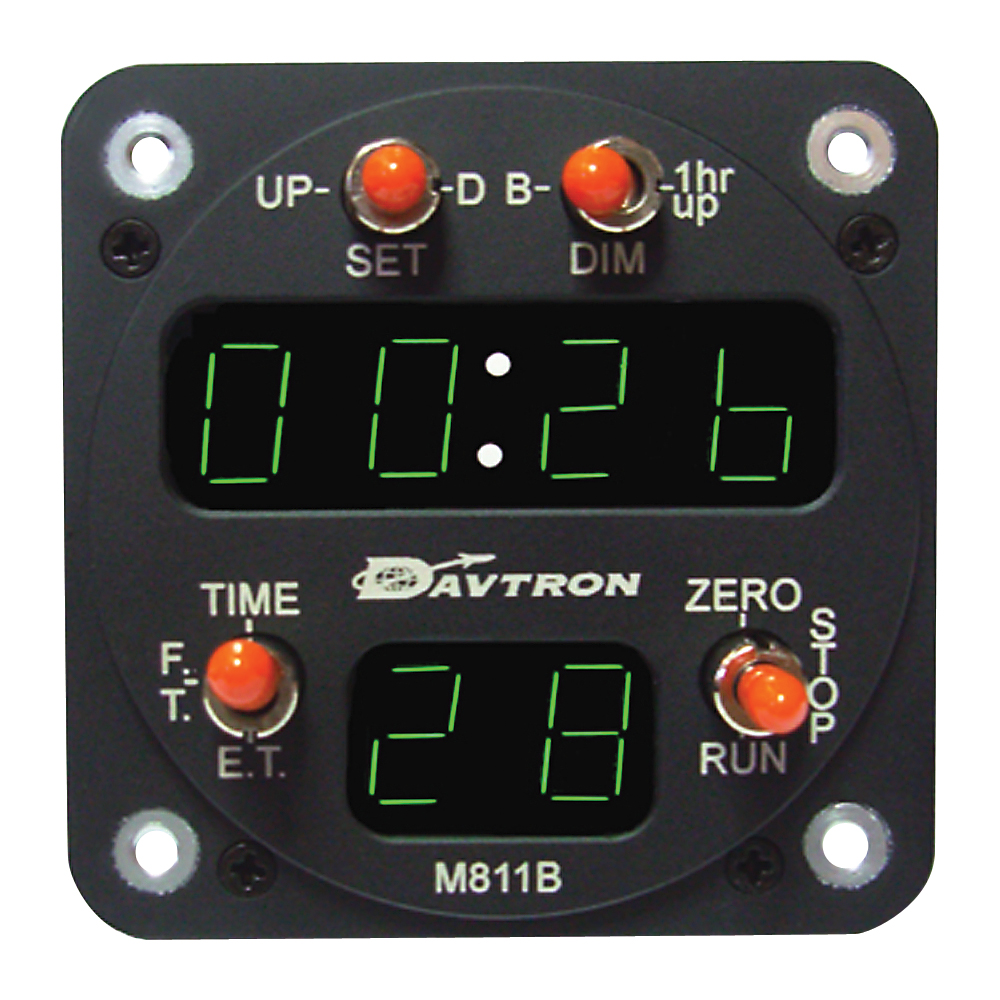

M811B Digital Clock | Flight Time Recorder, Elapsed Time Meter | Night Vision Compatible with KW515-4F Displays (Green A)

Product Description

The M811B Digital Clock is a multi-functional chronometer designed to operate under the most stringent operating conditions. It features three independent 6-digit solid state timing circuits: time, flight time, and elapsed time which can be controlled by the pilot. The incandescent display is readable in sunlight. Version 811B-1 has the ability to adjust local time to 12 hour or 24 hour setting. This model features night vision capability with KW515-4F Displays (Green A).

NOTE: 28V install requires the 811-28 Dropping Resistor (sold separately).

Specifications

• Weight:
  7.5 oz
• Input Current:
  0.4 amps
• Input Voltage:
  14 v
• NVIS Option:
  NVIS green A lighting
• Local Time:
  12-hour or 24-hour (user selectable)
• Flight Time:
  24 hour
• Elapsed Time Count Up:
  24 hour
• Battery Type:
  6 volt battery with 2-year operating life

Product Codes

• Mfr Part No
  M811B-24-NVG-15
• PMA
  PQ1062NM
