M811B Digital Clock | Flight Time Recorder, Elapsed Time Meter | Grey

CHRONOMETER/M811 Digital clock. Displays universal time, local time and flight time, 24 hour LT, 2 1/4 internal mount, 6 digit display, gray face plate.

DAVTRON

Call For Pricing
Available to order
EDMO # 811B-24A
MFR Part # M811B-24A
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

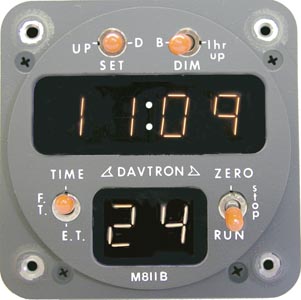

The M811B Digital Clock is a multi-functional chronometer designed to operate under the most stringent operating conditions. It features three independent 6-digit solid state timing circuits: time, flight time, and elapsed time which can be controlled by the pilot. The incandescent display is readable in sunlight. Version 811B-1 has the ability to adjust local time to 12 hour or 24 hour setting.

NOTE: 28V install requires the 811-28 Dropping Resistor (sold separately).

Features

  • 2 ¼" internal mount
  • Six-digit display on all 3 functions
  • Local time 12 hour or 24 hour (user selectable)
  • 24 hour flight time
  • 24 hour elapsed time counter
  • Sunlight readable display
  • Memory battery included

Specifications

  • Weight: 7.5 oz
  • Input current: 0.4 amps
  • Input voltage: 14 v
  • NVIS option: NVIS green A lighting
  • Local time: 12-hour or 24-hour (user selectable)
  • Flight time: 24 hour
  • Elapsed time count up: 24 hour
  • Battery type: 6 volt battery with 2-year operating life

Related Products

Product Codes

  • Mfr Part No
    M811B-24A
  • ECCN
    7A994
  • PMA
    PQ1062NM
  • SCHEDULE B CODE
    9104.00.0000
